Cycle Shelters

Encouraging people to be healthy and cycle requires the provision of suitable facilities for cycling infrastructure.  We offer Cycle shelters which are designed to complement any landscape whilst fulfilling the practical purpose of a secure storage solution with low maintenance parking solutions for a variety of sites or schemes. Our cycle shelters are ergonomically designed and are cost effective, and are weather and vandal resistant and offer protection from the elements. They can secure from two cycles to a couple of hundred and all of our shelters can be used in conjunction with any of our cycle stands. Single units can be placed alongside or opposite each other to form a larger cycle storage area.

We manufacture shelters that can be used to create a dedicated cycling area and to protect cycles from the British weather, whilst keeping them secure.  Some shelters offer adjustable levelling feet for on-site positioning.  Certain shelters can help contribute towards gaining ENE8 Cycle storage credits when used in the appropriate situation under the Code for Sustainable Homes. Cycle stands and shelters can be configured to meet the BREEAM building standard.

We can make any of our shelters to your unique specification and can include Built-in solar paneled LED lighting for added security.  We can offer optional gates in our shelter designs for added security with a manual or digital mechanical locking mechanism. For larger shelters we can include a gate closing gas strut option to ensure that gates are securely closed behind cyclists as they enter and exit the unit.

All products are manufactured in mild steel sections and are ‘hot dipped’ galvanized to BS EN ISO 1461:2009 for maxium corrosion resistance.  The shelter roof and back and optional side panels can be supplied in either plastisol coated corrugated steel or with a clear or opaque anti vandal PETG glazing.  All the shelters can be polyester powder coated (painted) to any standard BS or RAL series colour.  Our shelters are suitable for most ground and surface types.



Bespoke Design Services & 3 D Modeling and Visualisation

Bollard Street offers a comprehensive bespoke design service to help visualise client concepts and design briefs and turn them into full working drawings, manufacture and eventual installation.  The process allows us to produce and design a product, which works and fulfills your requirements in terms of both form and function.

We can upon request and an agreed nominal charge offer a full 3 D modeling service and visual renders of proposed shelters designs for approval and discussion. It is also possible to digitally impose the shelter design onto the proposed location or site for consultation and client approval.  All bespoke and commissioned CAD and 3D models are chargeable but charges can be reduced or refunded when a confirmed order is placed for a project.  Designs can be exchanged in the usual Autocad supported file formats such as DWG, DXF and also PDF for consultation and approval.

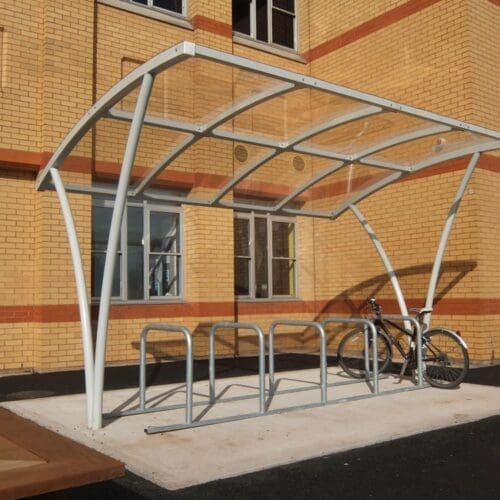

  • Stafford Cycle Shelter

    The Stafford is a modern asymmetrical design featuring twin splayed support struts with dramatic clean curves to create a dynamic contemporary structure. The sweeping lines of the anti-climb frame design blends well in most urban streetscapes and allows access from both sides.

    This robust modular design can be clad with either PETG glazing to the load bearing roof purlins in clear, opaque or bronze or a corrugated metal roof cladding profile in the Colourcoat HPS200 range of standard colours and profiles.

    Offering protection and storage for typically 10 cycles it’s ideally suited to schools, colleges, universities and commercial office blocks alike.

    The standard design features adjustable feat to accommodate and allow for undulating site surfaces. Most cycle stands and racks can be installed inside this shelter design.

    Construction:

    Welded twin end frame assembly featuring twin splayed 76 mm dia. CHS supports with  80 * 80 mm SHS mm strong box section, 60 * 60 mm SHS roof purlins all supplied in ‘flat pack’ form for assembly on site with anti-tamper, high strength bolts

    Hot dipped galvanised to BS EN ISO 1461: 2009 as standard.

    Dimensions: Height 2860 mm (front) 2150 mm (rear)

    Standard lengths 3600 mm, 4100, 5100 mm length, with alternative lengths and configurations made to order

    Options:

    PETG glazing to roof/back in clear, opaque or bronze

    End panels (quadrants)

    Corrugated metal roof cladding, Colourcoat HPS200 profile in a range of standard colours

    Shelter can be configured to BREEAM standards

    Steel framework can be polyester powder coated in most standard RAL colours

    Internal lighting

    Full installation service available UK wide by fully trained and accredited installers with a full site survey service available

  • Quartermoon shelter by Bollard Street, UK Street Furniture SpecialistsShelter by Bollard Street, UK Street Furniture Specialists

    Quartermoon

    A modern and versatile shelter the ‘Quartmoon’ design can includes integral cycle stands at the rear of the shelter meaning there is no need for fixing additional stands to the surface inside.

    Offering protection and storage for 10 cycles in total it’s ideally suited to schools, colleges and universities.  It can accommodate cycles in banks or can be even be used to form a compound ‘back to back’. Options include gates to the front of the shelter and end panels to constitute a secure cycle shelter. Gates can have either mechanical digital locks or a padlock. Additional units can even be bolted on to extend storage capacity at a later date to this modular shelter design. The standard unit features adjustable feat to accommodate and allow for undulating site surfaces. Most cycle stands and racks can be installed inside this shelter design.

    Construction:

    Welded twin end frame assembly in 60 * 60 mm strong box section, supplied in ‘flat pack form for assembly on site with anti-tamper, high strength bolts

    Hot dipped galvanised to BS EN ISO 1461: 2009

    Dimensions: Height 2150 mm 2040 mm width

    Standard lengths 3600 mm, 4100, 5000 mm length, with alternative lengths made to order

    Options:

    PETG glazing to roof/back in clear, opaque or bronze

    End panels (quadrants)

    Corrugated metal roof cladding, Colourcoat HPS200 profile in a range of standard colours

    Gates (Swinging and sliding) with digital mechanism or padlock fix

    Multiple banks to increase storage capacity

    Shelter can be configured to BREEAM standards

    Steel framework can be polyester powder coated in most standard RAL colours

    Internal lighting

    Full installation service available UK wide by fully trained and accredited installers with a full site survey service available

  • Tamworth shelter by Bollard Street, UK Street Furniture SpecialistsTamworth shelter by Bollard Street, UK Street Furniture Specialists

    Tamworth

    The Tamworth is a modern asymmetrical shelter featuring twin ‘splayed’ end frames with dramatic geometry to create a dynamic contemporary structure. This shelter design is

    well suited to most urban streetscapes and allows easy access to cycles inside.

    This robust design can be clad with either PETG glazing to the load bearing roof purlins in clear, opaque or bronze or a corrugated R32 metal roof cladding profile in the Colourcoat HPS200 range of standard colours and profiles.

    Offering protection and storage for typically 10 cycles it’s ideally suited to schools, colleges, universities and commercial office blocks alike.

    Most cycle stands and racks can be installed inside this shelter design.

    Construction:

    60 x 40 mm RHS strong box section uprights and roof frame.

    Supplied in ‘flat pack form for assembly on site with anti-tamper, high strength bolts

    Hot dipped galvanised to BS EN ISO 1461: 2009

    Dimensions:-

    Height 2200 mm to front, 1880 mm width 1940 mm

    Standard lengths 3600 mm, 4100, 5000 mm length, with alternative lengths made to order

    Options:-

    Range of cycle storage racks and stands

    PETG glazing or twin wall polycarbonate roof

    Corrugated steel roof cladding, R32,HPS 200 ColourCoat profile Is available in a range of standard colours

    Multiple banks to increase storage capacity

    Shelter can be made to BREEAM standards

    Steel framework can be polyester powder coated in most standard RAL colours

    Internal lighting

    Full installation service available UK wide by fully trained and accredited installers with a full site survey service available

  • Harlow cycle shelter by Bollard Street, UK Street Furniture Specialists

    Harlow Cycle shelter

    The Harlow is a modern symmetrical larger capacity cycle shelter design featuring twin

    splayed support struts with dramatic clean curves to create a dynamic contemporary

    structure. The sweeping lines of the anti-climb frame design blends well in most urban

    streetscapes.

    The shelter allows for provision of two rows of cycle stands inside which can be accessed

    from both sides. A standard five meter long shelter can accommodate 24 cycles.

    It’s ideally suited to schools, colleges, universities and commercial office blocks alike.

    This robust modular design can be clad with either PETG glazing to the load bearing roof

    purlins in clear, opaque or bronze or a corrugated metal roof cladding profile in the

    Colourcoat HPS200 range of standard colours and profiles.

    The standard design can have either a submerged ground fixing or a standard base plate

    fix. Most cycle stands and racks can be installed inside this shelter design.

    Construction:

    Welded twin end frame assembly featuring twin splayed 90 mm dia. CHS supports with

    50 * 50 mm SHS roof purlins all supplied in ‘flat pack’ form for assembly on site with

    anti-tamper, high strength bolts.

    Hot dipped galvanised to BS EN ISO 1461: 2009 as standard.

    Dimensions:- Height 4316 mm at apex, width 4200 mm

    Standard lengths 4100 mm, 5100 mm length, with alternative lengths and configurations

    made to order.

    Options:-

    PETG glazing to roof in clear, opaque or bronze

    Corrugated metal roof cladding, Colourcoat HPS200 profile in a range of standard colours

    Shelter can be configured to BREEAM standards

    Range of racks or stands

    Steel framework can be polyester powder coated in most standard RAL colours

    Internal lighting

    Full installation service available UK wide by fully trained and accredited installers with a

    full site survey service available

  • Quartermoon compoundQuartermoon compound

    Quartermoon Compound

    The classic and versatile ‘Quartermoon’ shelter design can be configured to form a modular compound with two banks of opposing shelters with various options to suit cycle storage capacity.

    Roof panels can cover the central walkway, whilst gates can be sited at either end with an end panel in either mesh or matching PETG glazing making the shelter totally secure. The gates can be locked by a padlock, hasp & staple, sliding bolt, digital mechanical lock or even swipe card systems for authorised users.

    Like the single standalone Quartermoon shelter it offers protection and storage for a large number of cycles in a linear capacity. It’s ideally suited to schools, colleges and universities.

    Additional units can even be bolted on to extend storage capacity at a later date to this modular shelter design. The standard unit features adjustable feat to accommodate and allow for undulating site surfaces. Most cycle stands and racks can be installed inside this particular shelter design.

    Construction:

    Welded twin end frame assembly in 60 * 60 mm strong square box section, supplied ‘flat pack’ for assembly on site with anti-tamper, high strength bolts

    Hot dipped galvanised to BS EN ISO 1461: 2009

    Dimensions:- Height 2150 mm 2040 mm width

    Modular bay lengths in 3600 mm, 4100 mm , with alternative lengths made to order

    Options:-

    Range of internal cycle storage racks and stands

    PETG glazing to roof/back in clear, opaque or bronze

    Corrugated metal roof cladding, Colourcoat HPS200 profile in a range of standard colours

    Gates (Swinging and sliding) with digital mechanism or padlock fix

    Integral helmet lockers, vertical or horizontal

    Multiple banks to increase storage capacity

    Shelter can be configured to BREEAM standards

    Steel framework can be polyester powder coated in most standard RAL colours

    Internal lighting

    Full installation service available UK wide by fully trained and accredited installers with a full site survey service available

  • Jersey

    The Jersey is an affordable open plan and ergonomic design that offers a cantilever roof design and can accommodate up to 10 cycles.  It is a rugged and robust free standing structure with unobtrusive twin upright supports and which is relatively easy to install.

    Most cycle stands and racks can be installed inside this shelter design.

    Construction:

    90 * 90 mm strong box section uprights, 60 * 60 mm roof frame

    Supplied in ‘flat pack form for assembly on site with anti-tamper, high strength bolts

    Hot dipped galvanised to BS EN ISO 1461: 2009

    Dimensions: Height 2315 mm to front, 2100 mm to rear,  2500 mm width

    Standard lengths 3600 mm, 4100, 5000 mm length, with alternative lengths made to order

    Options:

    Range of cycle storage racks and stands

    PETG glazing or twin wall polycarbonate roof

    Corrugated steel roof cladding, HPS 200 ColourCoat profile in a range of standard colours

    Multiple banks to increase storage capacity

    Shelter can be made to BREEAM standards

    Steel framework can be polyester powder coated in most standard RAL colours

    Internal lighting

    Full installation service available UK wide by fully trained and accredited installers with a full site survey service available

  • Pemberton shelter by Bollard Street, UK Street Furniture SpecialistsPemberton shelter by Bollard Street, UK Street Furniture Specialists

    Pemberton

    The Pemberton shelter is a cantilever open plan design which can be configured in numerous ways to accommodate cycle stands.

    It is a robust free standing structure with unobtrusive twin upright supports which contain ‘concealed’ integral gutter down pipes which enabling water to be discharged at ground level or alternatively connected to an underground drainage system.

    The shelter roof is R32 type profile corrugated metal cladding a standard however other options are available if you prefer clear PET to allow light into the structure.

    Most cycle stands and racks can be installed inside this shelter design.

    This flexible design can also be utilised as a smoking shelter, bespoke walkways and  canopies, and also as a ‘waiting’ shelter.

    Construction:

    120 x 120 mm strong box section uprights, 100 * 50 mm RHS roof frame.

    Supplied in ‘flat pack form for assembly on site with anti-tamper, high strength bolts

    Hot dipped galvanised to BS EN ISO 1461: 2009

    Dimensions:-

    Height 2200 mm to front, 2220 mm width

    Standard lengths 3600 mm, 4100, 5000 mm length, with alternative lengths made to order

    Options:-

    Range of cycle storage racks and stands

    PETG glazing or twin wall polycarbonate roof

    Corrugated steel roof cladding, R32 ,HPS 200 ColourCoat profile Is available in a range of standard colours

    Multiple banks to increase storage capacity

    Shelter can be made to BREEAM standards

    Steel framework can be polyester powder coated in most standard RAL colours

    Internal lighting

    Full installation service available UK wide by fully trained and accredited installers with a full site survey service available

  • London cycle shelter by Bollard Street, UK Street Furniture SpecialistsLondon cycle shelter by Bollard Street, UK Street Furniture Specialists

    London Cycle Shelter

    The London is a modern asymmetrical design featuring heavy duty splayed support struts with dramatic curves to create a dynamic contemporary structure. The sweeping lines of the anti-climb frame design blends well in most urban streetscapes.

    This robust modular design can be clad with either PETG glazing to the load bearing roof purlins in clear, opaque or bronze or a corrugated metal roof cladding profile in the Colourcoat HPS200 range of standard colours and profiles.

    Offering protection and storage for typically 10 cycles it’s ideally suited to schools, colleges, universities and commercial office blocks alike.

    The heavy duty steel frame features robust 1000 mm x 250 mm base plates for superior ground anchorage. Most cycle stands and racks can be installed inside this shelter design.

    Construction:

    Welded twin end frame assembly featuring twin splayed 76 mm dia. CHS supports with  80 * 80 mm SHS mm strong box section, 60 * 60 mm SHS roof purlins all supplied in ‘flat pack’ form for assembly on site with anti-tamper, high strength bolts

    Hot dipped galvanised to BS EN ISO 1461: 2009 as standard.

    Dimensions:- Height 2445 mm (front) 1640 mm (rear) width 2680 mm

    Standard lengths 3600 mm, 4100, 5100 mm length, with alternative lengths and configurations made to order

    Options:-

    PETG glazing to roof/back in clear, opaque or bronze

    Corrugated metal roof cladding, Colourcoat HPS200 profile in a range of standard colours

    Shelter can be configured to BREEAM standards

    Steel framework can be polyester powder coated in most standard RAL colours

    Internal lighting

    Full installation service available UK wide by fully trained and accredited installers with a full site survey service available

  • Sharktooth

    A modern design employing dramatic clean curves to create a contemporary structure with striking form and function. The sweeping lines of the frame design blends well in most urban streetscapes.

    This shelter can be supplied with either PETG glazing to roof/back in clear, opaque or bronze or a corrugated metal roof cladding profile in the Colourcoat HPS200 range of standard colours and profiles.

    Offering protection and storage for typically 10 cycles it’s ideally suited to schools, colleges, universities and commercial office blocks alike.

    The standard design features adjustable feat to accommodate and allow for undulating site surfaces. Most cycle stands and racks can be installed inside this shelter design.

    Construction:

    Welded twin end frame assembly in 60 * 60 mm strong box section, supplied in ‘flat pack’ form for assembly on site with anti-tamper, high strength bolts

    Hot dipped galvanised to BS EN ISO 1461: 2009

    Dimensions: Height 2150 mm 2130 mm width

    Standard lengths 3600 mm, 4100, 5000 mm length, with alternative lengths made to order

    Options:

    PETG glazing to roof/back in clear, opaque or bronze

    End panels (quadrants)

    Corrugated metal roof cladding, Colourcoat HPS200 profile in a range of standard colours

    Shelter can be configured to BREEAM standards

    Steel framework can be polyester powder coated in most standard RAL colours

    Internal lighting

    Full installation service available UK wide by fully trained and accredited installers with a full site survey service available

Site Surveys

We offer a full site survey service ensuring that all client requirements are fully realized.

From this we can even offer full 3 D modeling and visual renders of proposed shelters for approval and discussion if required. It’s possible digitally impose the shelter onto the proposed location or site for consultation.

  • Initial meeting to establish suitable product design, suitability, location and aesthetics finish and colour preference.
  • Basic dimensional survey of proposed location and surrounding areas
  • Ground survey, levels, CBR test, local drainage requirements, and manholes
  • CAT scan of proposed area, and request of any know services such as electric, gas, water, communication cables and ducting.
  • Access,  access to site and any possible restrictions and hazards to proposed project

Installation

Bollards Street Ltd offers a professional and comprehensive installation service across the UK for all its products if required. Ensuring all installations are completed to exacting standards and all sites are left clean and tidy.

All our experienced installations teams have CSCS cards and have over 25 years’ experience. We can offer installation of shelters straight to existing suitable surfaces or if required provide civils works and base preparation.

Please contact us for more information or a request for a site survey.

  • Concrete bases
  • Concrete Pockets
  • Strip footings
  • Concrete pockets
  • Tarmac including submerged concrete bases
  • Adjustable feet

Groundwork’s/Foundations

Structural calculations are available upon request for bespoke shelters and structures and foundations details are calculated to BS EN 1991-1-3:2003 Eurocode 1 and appropriate snow loadings and BS EN 1991-1-4:2005 Eurocode 1 Wind loadings.

Warranty

Bollards street Ltd products have a twelve month parts and labour warranty, however shelters and associated products are designed to have a projected ten year life span if the correct maintenance schedules are adhered to.

Funding for schools

There are various possible avenues to fund the potential purchase of a cycle shelter for your establishment if you are a school or educational establishment.  Certain shelters can help contribute towards gaining ENE8 Cycle storage credits when used in the appropriate situation under the Code for Sustainable Homes. Cycle shelters and stands can also be configured to meet the BREEAM building standard.

Useful web sites include:-

www.saferoutestoschools.org.uk, www.teachernet.gov.uk, www.access-funds.co.uk, www.fundraising.co.uk, www.easyfundraising.org.uk, www.lotterygoodcauses.org.uk, www.lotteryfunding.org.uk, www.schoolzone.co.uk, www.grantsonline.org.uk,

Technical composition of Bollard streets cycle shelter range

Mild steel framework

Most Bollards streets cycle shelters are manufactured and fabricated in mild steel owing to its durability and strength characteristics conforming to the British standard BS EN ISO 10025-S275.

Galvanizing to shelters

All Bollard streets products are ‘hot dipped’ galvanised to the British standards BS EN  ISO 1461 2009 and managed the quality standard ISO 9001 during this process. This gives shelters excellent protection against corrosion.

Polyester powder coating

Powder coating is an established and highly durable colour coating system which is available for all shelters in addition to galvanizing. There are numerous standard B.S and RAL colours available to select from in various gloss levels and finishes.

Cladding options

Two options are available PETG (plastic) and metal profile cladding.

PETG glazing is light and strong with excellent UV resistance and does not discolour or ‘yellow’. Other advantages are excellent scratch and shatter resistance it’s easy to clean and is also chemical resistant.

Metal cladding is also available in a range of standard colours and profiles, this cladding is strong and relatively light and is low maintenance. Bollard Street utilises the Corus colourcoat HPS 200 range of profiles.

Colourcoat HPS200 standard cladding colours swatch
