Pemberton

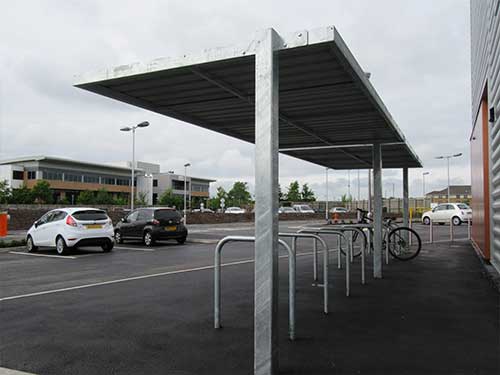

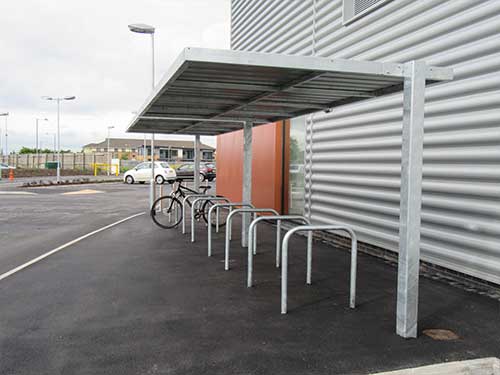

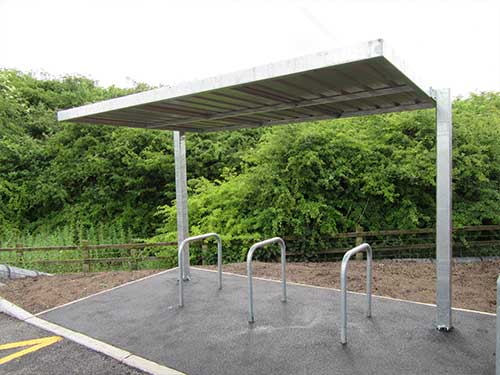

The Pemberton shelter is a cantilever open plan design which can be configured in numerous ways to accommodate cycle stands.

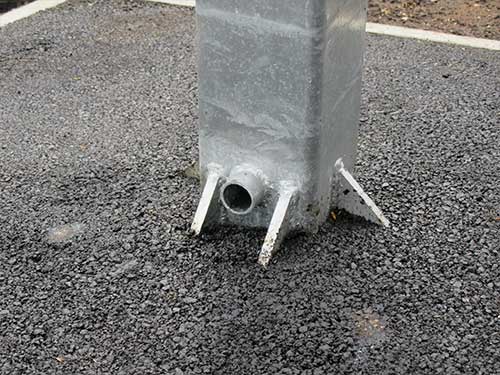

It is a robust free standing structure with unobtrusive twin upright supports which contain ‘concealed’ integral gutter down pipes which enabling water to be discharged at ground level or alternatively connected to an underground drainage system.

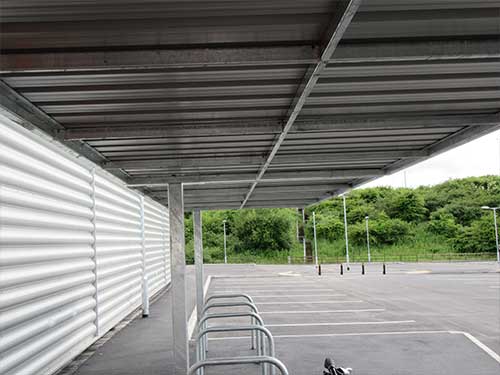

The shelter roof is R32 type profile corrugated metal cladding a standard however other options are available if you prefer clear PET to allow light into the structure.

Most cycle stands and racks can be installed inside this shelter design.

This flexible design can also be utilised as a smoking shelter, bespoke walkways and  canopies, and also as a ‘waiting’ shelter.

Construction:

120 x 120 mm strong box section uprights, 100 * 50 mm RHS roof frame.

Supplied in ‘flat pack form for assembly on site with anti-tamper, high strength bolts

Hot dipped galvanised to BS EN ISO 1461: 2009

Dimensions:-

Height 2200 mm to front, 2220 mm width

Standard lengths 3600 mm, 4100, 5000 mm length, with alternative lengths made to order

Options:-

Range of cycle storage racks and stands

PETG glazing or twin wall polycarbonate roof

Corrugated steel roof cladding, R32 ,HPS 200 ColourCoat profile Is available in a range of standard colours

Multiple banks to increase storage capacity

Shelter can be made to BREEAM standards

Steel framework can be polyester powder coated in most standard RAL colours

Internal lighting

Full installation service available UK wide by fully trained and accredited installers with a full site survey service available
