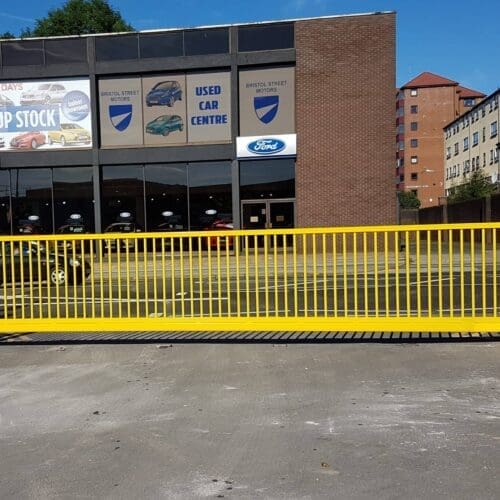

Barrier systems and gates in use for a leading car supplier on showroom car park supplied by Bollard Street.

Barrier Systems & Gates

We have an extensive range of both fixed and moving barriers suitable for controlling access into designated areas. This access is restricted to only those who are authorised to be there.

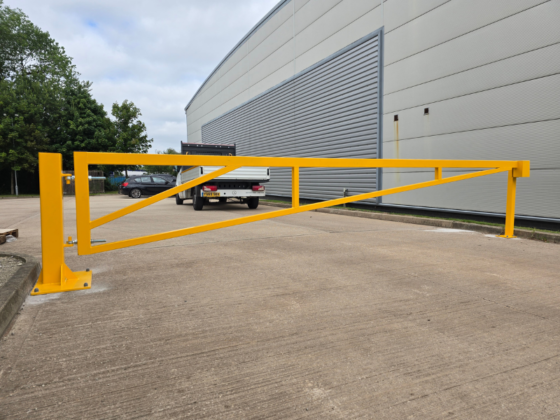

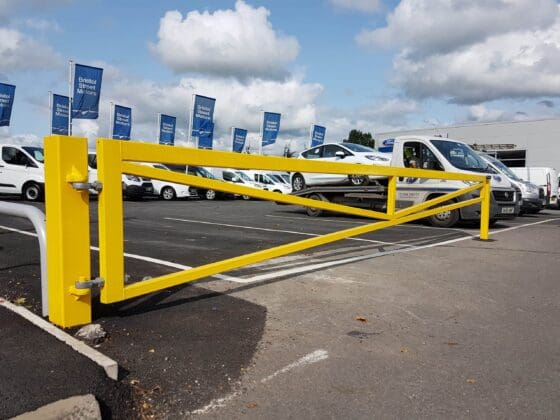

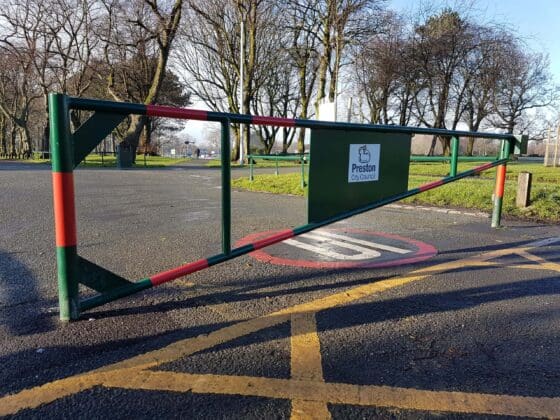

Our barrier systems and gates are suitable for various applications with products including manual rising arm barriers, gates, vehicle height restrictors, wheel stoops, armco, pedestrian guardrail systems, hooped barriers and doorstop units.

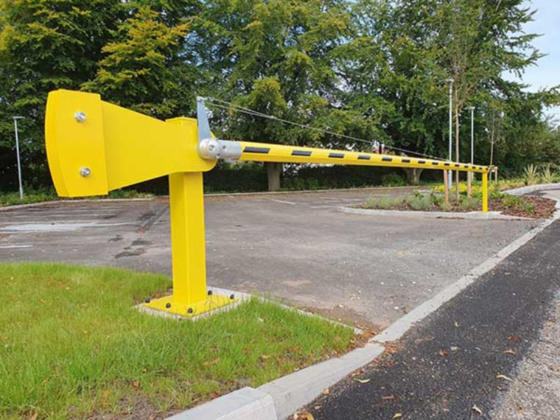

The rising arm barrier features a counter-balance mechanism with a rising ‘boom’ arm which is lockable in both the closed and upright positions. Bollard Street can also provide bespoke height restriction barriers to restrict the size of vehicles allowed into specified areas. Our hoop barriers create an ideal physical barrier for perimeters typically utilised on commercial garages and forecourts. Alternatively, our manual swinging gates made to order offer an ideal solution to control access into sites. All of our barriers can be polyester powder coated to most RAL series colours so that they correspond to corporate colour schemes.

For more information about any of our barrier systems or gates please contact our sales department.

  • Cranked Bollard in Mild Steel

    Product code: MS.CKBOL

    The cranked bollard is typically utilised and positioned strategically to protect corners of drive through restaurants to protect damage to the corners of buildings, menu boards and speaker posts etc.

    Bollards are available in all standard mild steel round diameter/sections (CHS tube) in various wall thickness and hot dip galvanised to BS EN ISO 1461:2009 for maximum corrosion resistance and or polyester powder coated in any standard RAL or BS colour to match corporate colour schemes.

    These bollards are manufactured to suit our customers own specific individual project requirements, so the width of the post can be specified and once agreed a final drawing sent over for final consultation and agreement.

    Reflective banding can also be applied to the bollard to increase visibility and reduce the likelihood of a potential impact.

    Formats include:-
    • Static root fix, ‘ragged fix’
    • Base plate fix
    Options: –

    Polyester powder coating to most standard RAL and BS standard colours
    Reflective banding, applied to the bollard in various colours, patterns.
    Turned rebates for the banding to be set into
    Loose cap with ‘J’ tang for concrete filling bollard for additional strength
    Hot dip galvanising to BS EN ISO 1461:2009 for maximum corrosion resistance

    Bollard top options:-
    Flat, semi dome, ‘high’ dome, sloped angled/mitred top, loose top cap with ‘J’ tang.
    Dimensions:-

    Various standard bollard diameters to order from 76 mm diameter up to 193 mm diameter.
    76, 90,101, 114, 127, 140, 150, 168, 193 mm

    Standard bollard lengths:-

    1000 mm, 900 mm or 750mm heights above ground or made to client’s specification

  • Cranked Bollard in Stainless Steel

    Product code: SS.CKBOL

    The cranked bollard is typically utilised and positioned strategically to protect corners at drive through restaurants to protect damage to the corners of buildings, menu boards and speaker posts etc.

    Bollards are available in all stainless steel standard round diameters/sections (CHS tube) in various wall thickness. The standard finish is a ‘brushed satin’ (240 grit) with a highly polished mirror finishes also available to order. Standard material is grade 304 with marine grade 316 also available for ‘harsher’ marine type environments.

    These bollards are manufactured to suit our customers own specific individual project requirements, so the width of the post can be specified and once agreed a final drawing sent for final consultation and agreement.

    Reflective banding can also be applied to the bollard to increase visibility and reduce the likelihood of a potential impact.

    Formats include:-
    • Static root fix, ‘ragged fix’
    • Base plate fix
    Options: –

    Reflective banding, applied to the bollard in various colours, patterns.
    Turned rebates for banding to be set into

    Bollard top options:-
    Flat, semi dome, ‘high’ dome, sloped angled/mitred top.
    Dimensions:-

    Various standard bollard diameters to order from 76 mm diameter up to 193 mm diameter.
    76, 90,101, 114, 127, 140, 150, 168, 193 mm

    Standard bollard lengths:-

    1000 mm, 900 mm or 750mm heights above ground or made to client’s specification

  • Heavy duty barrier

    The Heavy duty raise arm barrier spans an area of up to 9.0 metres. The pivot assembly is made of steel box section, this pivots on two heavy duty stainless steel bearing blocks.

    Aluminium arm, finished in either alternate red and white or alternate yellow and black vinyl hatching as standard (other colours available).The design of the barrier also comes with a locking mechanism allowing you to fix the barrier in the raised and lowered position prior to applying the padlock. A counter balanced fish tail weight, is fine tuned for ease of operation. Dual barriers are available with a central locking mechanism to suit wider spans. This barrier unit comes complete with a lockable end rest, padlock and keys as standard. M16 anchor shield bolts are also included.

    Standard colours: Red/white or yellow/black.

    Specification:

    Counter balanced manual raise arm barrier

    Maximum boom length:

    Up to 9.0 meters

    Boom diameter:

    101 mm oval section pole

    Finish:

    Polyester powder coated in a single RAL colour, alternate vinyl bands to pole arm

    Dimensions:

    120 mm square

    Comes complete with:-

    • Lockable end post
    • Padlock
    • Anchor shield bolts
    • Lifting handle

    Optional extras:-

    Bottom skirting

    Stop/no entry signs

    Pogo tip support

  • Lux heavy duty barrier by Bollard Street, UK Street Furniture SpecialistsLux heavy duty barrier by Bollard Street, UK Street Furniture Specialists

    Lux Heavy duty barrier

    The ‘Lux’ heavy duty barrier is a superior quality heavy duty manual barrier which spans roads up to 9.0 metres. The pivot assembly is made of laser cut mild steel sections with a robust 150 mm x 100 mm support post.

    A 101 mm dia. aluminium pole arm, finished in either alternate red and white or alternate yellow and black vinyl hatching as standard (other colours available).The design of the barrier also comes with a locking mechanism allowing you to fix the barrier in the raised and lowered position prior to applying the padlock. A counter balanced fish tail weight, is ‘fine-tuned’ and weighted perfectly for ease of operation. Dual barriers are available with a central locking mechanism to suit wider spans. This barrier unit comes complete with a lockable end rest, padlock and keys as standard. M16 anchor shield bolts are also included.

    Standard colours: Red/white or yellow/black.

    Specification:

    Counter balanced manual raise arm barrier

    Maximum boom length:

    Up to 9.0 meters

    Boom diameter:

    101 mm round section aluminum pole

    Finish:

    Polyester powder coated in a single RAL colour, alternate vinyl bands to pole arm

    Dimensions:

    150 mm x 100 mm rectangular support post

    Comes complete with:-

    • Lockable end post
    • Padlock
    • Anchor shield bolts
    • Lifting handle

    Optional extras:-

    Bottom skirting

    Stop/no entry signs

    Pogo tip support

  • Petrol Pump Hoop

    Product Code: STHB.PETR
    An attractive ‘rolled’ forecourt hoop available in 60 or 76 mm diameter mild steel tube tube typically utilised to protect petrol pumps.
    Manufactured in mild steel conforming to BS1440 which is hot dipped galvanised BS EN ISO 1461:2009 as standard for maximum protection against the elements.
    This unit can also be polyester powder coated in most standard BS or RAL colours.

    Illustrated in white and yellow RAL 9003 AND RAL1023

    Section/diameter: 60.3 mm or 76.1 mm dia.
    Standard gauge/wall thickness: 3,4 or 5 mm
    Standard Length: 900 mm overall
    Height above ground: 870 mm
    Overall height: 1170 mm overall
    Weight: 12 kg in 60 mm diameter tube, in 3 mm gauge mild steel

    Options:-

    Alternative lengths and heights are available to order
    Polyester powder coating to most standard RAL colours
    Base plate fix version available

  • Standard duty barrier by Bollard Street, UK Street Furniture SpecialistsStandard duty barrier by Bollard Street, UK Street Furniture Specialists

    Standard Duty Barrier

    The standard duty manual raise arm barrier is a low maintenance, cost effective way of manually controlling access to unauthorised areas.

    The barrier spans an area of up to 7.0 metres. The pivot assembly is made of steel box section, the zinc plated shaft pivots on two heavy-duty stainless steel bearing blocks. The design of the barrier incorporates a locking mechanism, allowing you to fix the barrier in the raised or lowered position prior to applying the padlock.  A counter balanced fish tail weight, is fine tuned for ease of operation. This barrier unit comes complete with a lockable end rest, padlock and keys as standard. M16 anchor shield bolts are also included.

    Aluminium arm, finished in either alternate red and white or alternate yellow and black vinyl hatching as standard (other colours available).

    Standard colours: Red/white or yellow/black.

    Specification:

    Counter balanced manual raise arm barrier

    Maximum boom length:

    3 up to 7.0 meters

    Boom diameter:

    76 mm oval section pole

    Finish:

    Polyester powder coated in a single RAL colour, alternate vinyl bands to pole arm

    Dimensions:

    120 mm square

    Comes complete with:-

    • Lockable end post
    • Padlock
    • Anchor shield bolts
    • Lifting handle

    Optional extras:-

    Bottom skirting

    Stop/no entry signs

    Pogo tip support

  • Telescopic boom barrier by Bollard Street, UK Street Furniture SpecialistsTelescopic boom barrier by Bollard Street, UK Street Furniture Specialists

    Telescopic boom barrier

    A manual rising arm barrier featuring an innovative adjustable telescopic pole (boom arm). This barrier is suitable for most road widths and is adjustable for road widths from 3050 mm up to 6400 mm.

    The 80 mm x 80mm aluminum boom barrier elongated by a 70 mm x 70 mm aluminum shaft. Width ranging from 3200 to 6550mm (distance between rotation axis and the end of the barrier) with a width between the posts from 3050 to 6400 mm.

    Rotation on a stainless-steel shaft on ball bearings.

    Hidden counterweight set on top of boom.

    Can be locked in the upright position (on the main post) or downwards position (on the rest post) by the pin and padlock supplied.

    Complete with mild steel rest post.

    White lacquered finish with red reflective strips. Fixed to adjustable base plate with kit of U-shaped bolt.

    Fixed to on a base plate with installation kit supplied.

    Options:-

    Locking with an 11 mm triangle key.

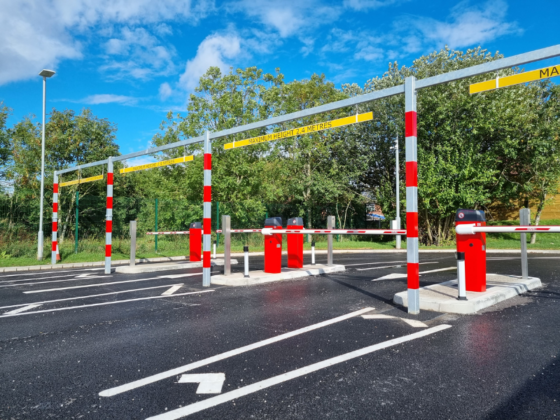

  • Single Leaf Opening Height Restriction Barrier

    This durable and reliable restriction barrier features a single leaf gate which is suitable for shorter road widths up to 6 meters to allow permitted access for taller vehicles when required. Two units can be utilized to bridge larger road widths as a double unit.The unit is polyester powder coated as standard in RAL 1023 traffic yellow, with alternative RAL colours also available. Longer units may feature a tension wire system to maintain the gate height. Clear signage allows vehicle occupants the opportunity to determine whether they have sufficient clearance to proceed under the cross beam in order to pass. The unit can be locked in either the ‘open’ or ‘closed’ position via an additional latch post if required by means of a padlock.

    Specification:-

    • 100 mm x 100mm x 4 mm Mild Steel Square Hollow Section Vertical Posts.
    • 80 mm x 80 mm x 3 mm Mild Steel Hinged Section cross bar a with 40 mm x 40 mm x 3 mm Cross Brace welded diagonally to corner.
    • Standard Height 2.1meters with alternative heights manufactured to customers own specification
    • Spans from 3 m to 6 m manufactured to customer specification.
    • Powder Coated to any standard RAL colour and or Hot dipped galvanised finishes available.

    Options:-

    Support posts can be base plate fix (surface mounted) or root fix (submerged).

    Hot dipped Galvanising to BS EN ISO 1461 (2009) prior to polyester powder coating.

    Vinyl and reflective banding in various colours and grades of reflective material.

    Height restriction signs ‘WARNING HEIGHT RESTRICTION’ signage and padlocks.

    Can be supplied with additional latch post to lock in the open position.

    Nudge bar is available

    Fixings bolts

  • Swinging Height Restrictor Bisecting

    This durable and reliable restriction barrier features a twin leaf cross beam which is suitable for wider road widths from 3 meters and up to 10 meters to allow permitted access for taller vehicles when required. The cross beam is locked into position by means of an integral latch which is in turn secured by a padlock by the user.

    The unit is polyester powder coated as standard in RAL 1023 traffic yellow, with alternative RAL colours also available. Clear signage allows vehicle occupants the opportunity to determine whether they have sufficient clearance to proceed under the cross beam in order to pass. The unit also can be locked in the ‘open’ position via an additional latch post if required by means of a padlock.

    Specification:-

    • 101 mm dia. 5 mm Mild Steel circular hollow section vertical posts.
    • 120 mm x 60 mm x 3 mm mild steel cross bar.
    • Standard Height 2.1meters with alternative heights manufactured to customers own specification
    • Spans from 3 m to 10 m manufactured to customer specification.
    • Powder Coated to any standard RAL colour and or Hot dipped galvanised finishes available.

    Options:-

    Support posts can be base plate fix (surface mounted) or root fix (submerged).

    Hot dipped Galvanising to BS EN ISO 1461 (2009) prior to polyester powder coating.

    Vinyl and reflective banding in various colours and grades of reflective material.

    Height restriction signs ‘WARNING HEIGHT RESTRICTION’ signage and padlocks.

    Can be supplied with additional latch post to lock in the open position.

    Nudge bar is available

    Fixings bolts
