The Modern

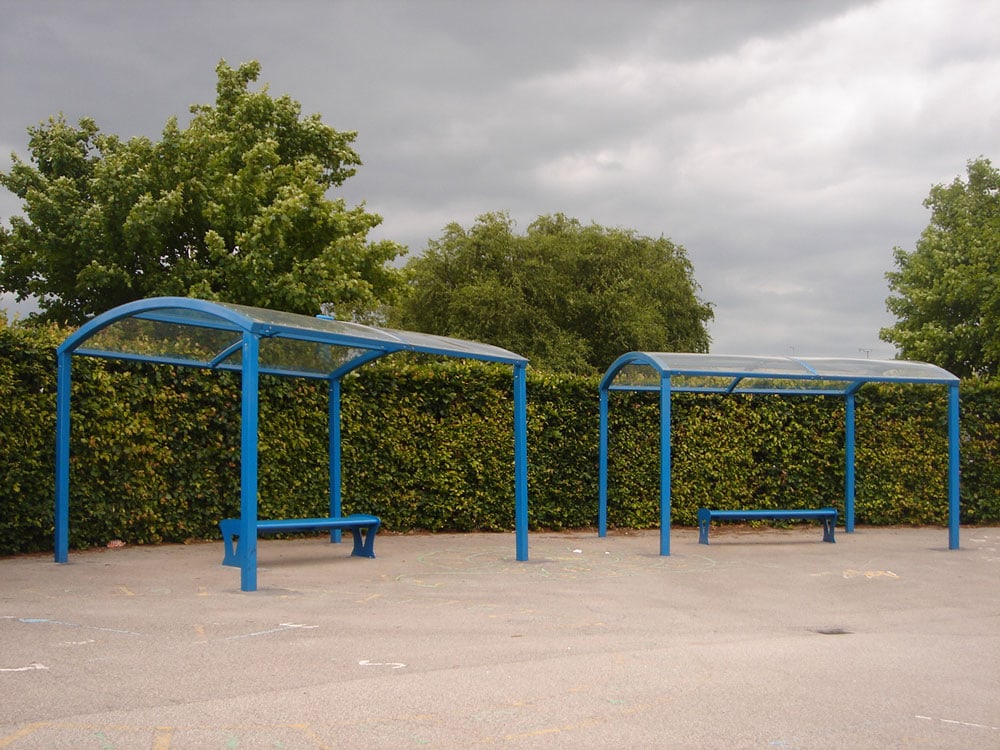

The Modern shelter is open sided and flexible design and which can accommodate either cycle racks and stands or seating featuring a barrel roof design. It is a fully galvanized unit shelter can be used in a variety of applications as a standalone unit and in various configurations. Available with various cladding options to the roof including PETG glazing in clear, opaque or bronze or a corrugated metal roof cladding profile in the Colourcoat HPS200 range of standard colours and profiles.

Additional units can be ‘bolted on’ to extend storage capacity at a later date to this modular shelter design. The standard unit features adjustable feat to accommodate and allow for undulating site surfaces. Whilst most cycle stands and racks can be installed inside this shelter design.

Construction:

Supports legs in 100 * 100 mm, roof frame assembly and purlins in 60 * 60 mm strong box section. Supplied in ‘flat pack form for assembly on site with anti-tamper, high strength bolts

Hot dipped galvanised to BS EN ISO 1461: 2009

Dimensions: Height 2500 mm to apex, 2100 mm clearance

Standard lengths 3600 mm, 4100, 5000 mm length, with alternative lengths made to order

Options:

Range of internal cycle storage racks and stands

PETG glazing to roof in clear, opaque or bronze

Corrugated metal roof cladding, Colourcoat HPS200 profile in a range of standard colours

Multiple banks to increase storage capacity

Shelter can be configured to BREEAM standards

Steel framework can be polyester powder coated in most standard RAL colours

Internal lighting

Guttering systems

Full installation service available UK wide by fully trained and accredited installers with a full site survey service available

Internal LED lighting

Full installation service available UK wide by fully trained and accredited installers with a full site survey service available
