Access Control Products

Bollard Street offers access control and traffic products that are specifically designed for the control and regulation of vehicular traffic into designated sites.

Products include automatic bollards, barriers, gates and road blockers (rising kerbs) and traffic control flow plates, which can all be controlled by various types of access control system.

Common applications include car parks, factory entrances, schools and military bases.

For more information about any of these products please contact our sales department.

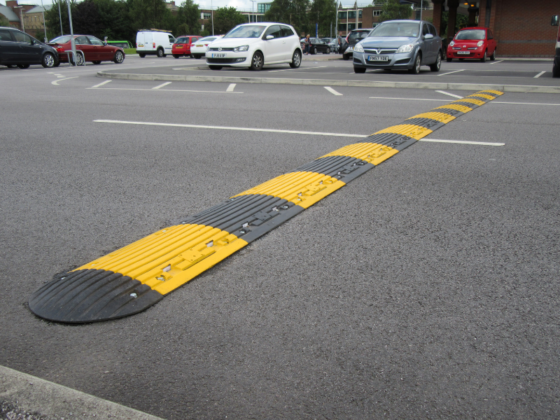

  • Speed Restrictor Ramps

    Speed restrictor ramps are traffic calming devices that use vertical deflection to slow motor-vehicle traffic in order to improve safety conditions. The aim of reducing vehicle speed is to improve public safety and reduce the number of pedestrian and vehicle accidents. Speeds ramps have become a common and highly visible feature in car parks and roads because they encourage traffic to move slowly and safely.

    These modular units can be arranged and installed to effect and reduce the speed of on-coming traffic on most sites or locations. Manufactured in the UK from 100 % recycled heavy duty PVC in either 30, 50 mm or 75 mm heights they are coloured in either high visibility yellow or black, which simply slot together on site. Typically alternate colours are laid to aid visibility. Units can be fixed in the ‘short term’ by use of an adhesive and later relocated and bolted down for permanent fixing. It is recommended that ‘speed warning signs’ are also used in conjunction with any speed ramp installation to warn approaching traffic of their presence.

    Specifications:-

    • Manufactured in a highly durable and proven solid black recycled PVC manufactured in the UK with middle segments or end segments also available in a painted contrast high visibility ‘traffic’ yellow.
    • 12 month warranty
    • No slip surface with integral cats eyes as standard for extra visibility and safety
    • Built in channel for temporary traffic lights etc

    30 mm height system, reduces speed to 15 MPH

    Length 500 mm (End Caps 210 mm), part number SP30.MD
    Width 400 mm (End Caps tapered), part number SP30.ED
    Weight 5 Kg (End Caps 1.8 Kg)
    30,000 Kg weight capacity
    Integral channel 20 mm x 40 mm

    50 mm height system, reduces speed to 10 MPH

    Length 500 mm (End Caps 210 mm), part number SP50.MD
    Width 420 mm (End Caps tapered), part number SP30.ED
    Weight 7.7 Kg (End Caps 2.5 Kg)
    30,000 Kg weight capacity
    Integral channel 20 mm x 40 mm

    75 mm height system, reduces speed to 5 MPH

    Length 500 mm (End Caps 210 mm), part number SP75.MD
    Width 480 mm (End Caps tapered), part number SP75.ED
    Weight 12.5 Kg (End Caps 5.5 Kg)
    30,000 Kg weight capacity
    Integral channel 50 mm x 60 mm

    Fixing

    • It is recommended that sections are fixed using anchor bolts to a suitable level concrete surface.
    • Each 500 mm long central segment requires 4 anchor bolts.
    • Each individual end cap requires 2 anchor bolts.
    • Specialist anchor bolts are available for tarmac and asphalt surfaces.

    Current UK legislation requires any person or company offering car park facilities to conduct a safety audit, and where vehicle speed in any area shared with pedestrians is a manageable risk, speed bumps are acknowledged to be the most effective speed risk management tool. The Health & Safety Executive have also stated that where no pavement exists, speed bumps are the ideal way to zone pedestrian walkways in areas shared with vehicles i.e. car parks, drives and access roads width of 500mm

  • Surface Mounted Flow Plate

    Model No. TCFP-SM
    Height of Returning Top Plate: 110mm
    Base Material: Heavy duty steel plate
    Unit Dimensions: 255 x 430 x 110mm
    Top Plate Material: 8mm Durbar Steel
    Recommended Top Speed: Not to exceed 5mph
    Finish: Primed and painted in traffic yellow RAL1023
    Weight of Unit: 17kg
    Optional finish:
    Unit can be hot dipped galvanised to order
    Options: Lock down facility
    Required fixings: 6 nr M12 fixings are required per plate to secure (not supplied as standard)

    Installation

    It’s recommended that surface flow plates are bolted to a suitable concrete surface.

    NOTE: CONCRETE MUST BE HAVE CURED FOR A MINIMUM OF 36 HOURS BEFORE USE

    Please contact our sales department for further information relating to the recommended layout and the number of plates required for a particular road width and the installation details for this product.

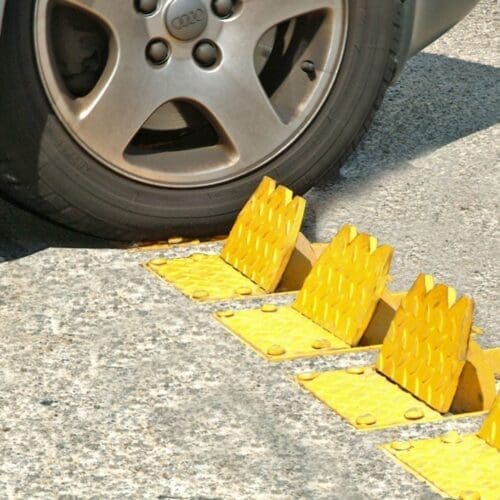

  • Recessed Flow Plate

    Model Number: TCFP-RE
    Height of Returning Top Plate: 110mm
    Base Material: Heavy duty steel plate
    Unit Dimensions: 250 x 250 x 250 mm
    Top Plate Material: 8mm Durbar Steel
    Recommended Top Speed: Not to exceed 5mph
    Finish:
    Galvanised top plate. Primed and painted in traffic yellow RAL1023
    Weight of Unit: 32kg
    Options: Lock down facility

    Installation

    Typical installation of flow plates to 3 metre wide road:-

    1. Cut trench across road 900mm wide x 325mm deep.
    2. Lay concrete base 75mm thick.
    3. Set plates as shown and connect drainage ducting to each plate and main drain.
    4. Pour concrete and finish level with road surface.

    NOTE: CONCRETE MUST BE HAVE CURED FOR A MINIMUM OF 36 HOURS BEFORE USE

    Please contact our sales department for further information relating to the recommended layout and the

    Number of plates required for a particular road width and the installation details for this product.
