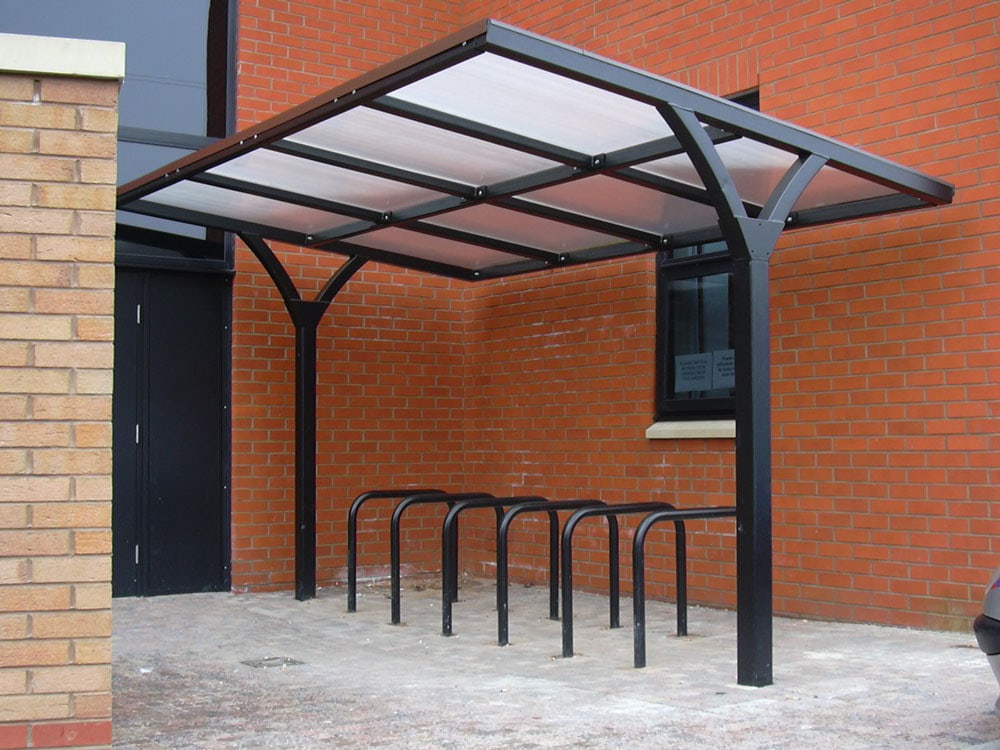

Jersey

The Jersey is an affordable open plan and ergonomic design that offers a cantilever roof design and can accommodate up to 10 cycles.  It is a rugged and robust free standing structure with unobtrusive twin upright supports and which is relatively easy to install.

Most cycle stands and racks can be installed inside this shelter design.

Construction:

90 * 90 mm strong box section uprights, 60 * 60 mm roof frame

Supplied in ‘flat pack form for assembly on site with anti-tamper, high strength bolts

Hot dipped galvanised to BS EN ISO 1461: 2009

Dimensions: Height 2315 mm to front, 2100 mm to rear,  2500 mm width

Standard lengths 3600 mm, 4100, 5000 mm length, with alternative lengths made to order

Options:

Range of cycle storage racks and stands

PETG glazing or twin wall polycarbonate roof

Corrugated steel roof cladding, HPS 200 ColourCoat profile in a range of standard colours

Multiple banks to increase storage capacity

Shelter can be made to BREEAM standards

Steel framework can be polyester powder coated in most standard RAL colours

Internal lighting

Full installation service available UK wide by fully trained and accredited installers with a full site survey service available

SKU: CYSH.JERS Category:
