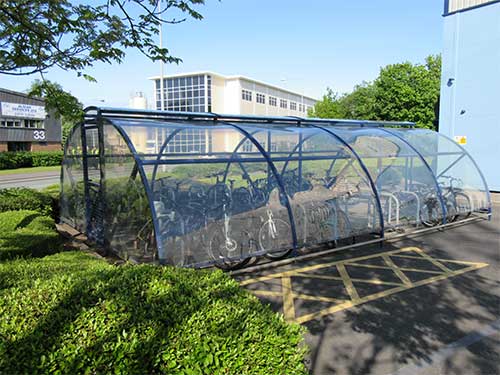

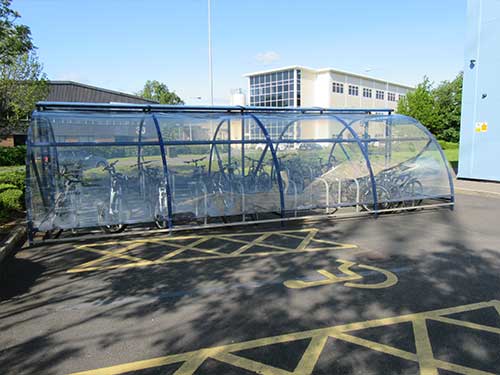

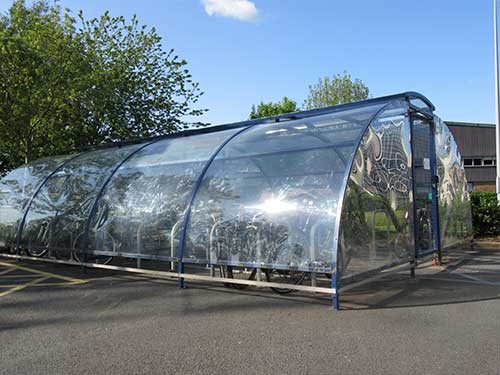

Quartermoon Compound

The classic and versatile ‘Quartermoon’ shelter design can be configured to form a modular compound with two banks of opposing shelters with various options to suit cycle storage capacity.

Roof panels can cover the central walkway, whilst gates can be sited at either end with an end panel in either mesh or matching PETG glazing making the shelter totally secure. The gates can be locked by a padlock, hasp & staple, sliding bolt, digital mechanical lock or even swipe card systems for authorised users.

Like the single standalone Quartermoon shelter it offers protection and storage for a large number of cycles in a linear capacity. It’s ideally suited to schools, colleges and universities.

Additional units can even be bolted on to extend storage capacity at a later date to this modular shelter design. The standard unit features adjustable feat to accommodate and allow for undulating site surfaces. Most cycle stands and racks can be installed inside this particular shelter design.


Welded twin end frame assembly in 60 * 60 mm strong square box section, supplied ‘flat pack’ for assembly on site with anti-tamper, high strength bolts

Hot dipped galvanised to BS EN ISO 1461: 2009

Dimensions:- Height 2150 mm 2040 mm width

Modular bay lengths in 3600 mm, 4100 mm , with alternative lengths made to order


Range of internal cycle storage racks and stands

PETG glazing to roof/back in clear, opaque or bronze

Corrugated metal roof cladding, Colourcoat HPS200 profile in a range of standard colours

Gates (Swinging and sliding) with digital mechanism or padlock fix

Integral helmet lockers, vertical or horizontal

Multiple banks to increase storage capacity

Shelter can be configured to BREEAM standards

Steel framework can be polyester powder coated in most standard RAL colours

Internal lighting

Full installation service available UK wide by fully trained and accredited installers with a full site survey service available

To enquire about this product please click here or give us a call on 01942 246 018 today.

SKU: CYSH.LOCO Category:
