Nexus

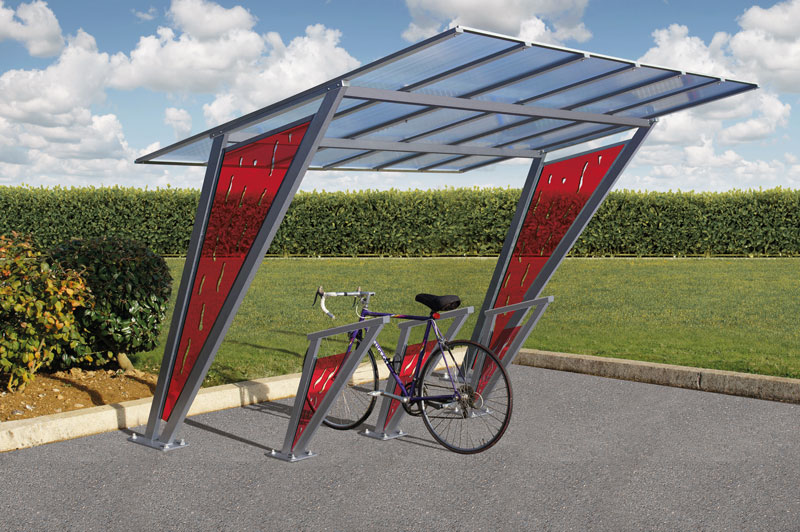

The Nexus shelter is a modern and unique design. This modular shelter is part of a coordinating suite of street furniture ‘the nexus collection’.

It accommodates 6 or 12 cycles depending on the configuration is a single or double shelter with an unglazed central panel.

The shelter is a manufactured from a combination of aluminum and mild steel sections that results in a shelter design that offers protection and storage for a large number of cycles in a linear capacity. The capacity can be increased by adding further units together. Most cycle stands and racks can be installed inside this shelter but the matching nexus stand can be used to complete the angular look.

Construction:

A robust and elegant design manufactured in strongbox 80 x 40 mm mild steel section

Featuring decorative side panels (Made of polycarbonate plasma cut & tinted in a choice of 715 grey, 327 red or 636 green)

Supplied in ‘flat pack form for assembly on site with anti-tamper, high strength assembly bolts. Base plate fix for direct fix to concrete.

The shelters is hot dipped galvanised to BS EN ISO 1461: 2009 as standard.

The roof has aluminum cross members 50 x 30 mm and 50 x 20 mm mild steel profile cross members.

The roof is in 10 mm polycarbonate UV stable glazing or 1 mm galvanized sheet steel.

The side cladding is made up of 10 mm PVC side cladding.

Finish:

The shelter can be powder coated to most standard RAL or BS colour

Dimensions: Height 2300 mm (front) 1700 mm (rear) 2528 mm width,

Length 3146 mm

Options:

Optional back cladding, 10 mm cellular polycarbonate

Extension units of 3200 mm can be added

Decorative end panels/inserts in galvanized only or grey, red or green

Matching nexus cycle stand

Extension units, modular to increase capacity

Shelter can be configured to BREEAM standards

Steel framework can be polyester powder coated in most standard RAL colours

Full installation service available UK wide by fully trained and accredited installers with a full site survey service available

SKU: CYSH.NEXU Category:
