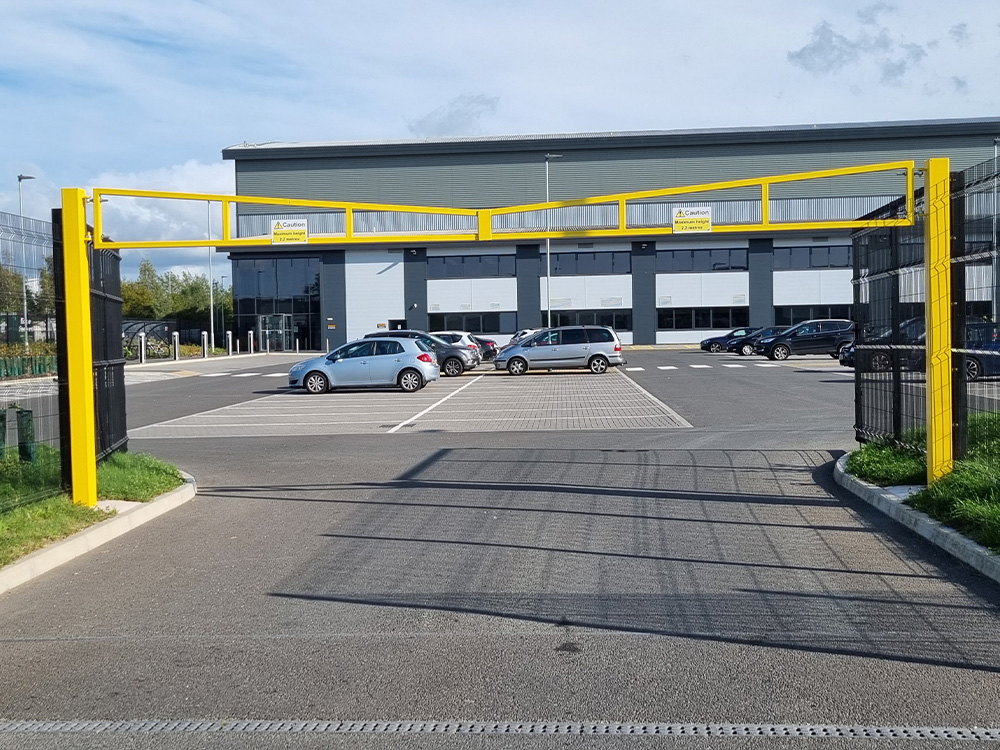

Double Leaf Ladder Style Swing Height Restrictor

This durable and reliable restriction barrier features a double leaf gate which is suitable for wider roads or entrances. This product can be opened to allow high sided access if needed. The unit can be locked in either the ‘open’ or ‘closed’ position via an additional latch post if required by means of a padlock. The unit is polyester powder coated as standard in RAL 1023 traffic yellow, with alternative RAL colours also available. Full manufacturing drawings will be issued on receipt of an order, tailored to customers requirements.

Specification:-

• 100mm x 100mm (150mm x 150mm on longer spans) Mild Steel Square Hollow Section Vertical Posts
• 50 mm x 50 mm Mild Steel Hinged ‘Ladder’ effect gates
• Hasp and Staple Locking mechanism (Padlock not Supplied)
• Spans 3m, 4m, 5m, 6m, 7m, 8m, 9m, 10m, 11m, 12m or customer specification
• Height 1.9m, 2m, 2.2m 2.3m, 2.4m, 2.5m or customer specification
• Powder Coated to any standard RAL colour and or Hot dipped galvanised finishes available
• Root fix as standard

Options:-

Can be supplied with additional latch post to lock in the open position.

Support posts can be base plate fix (surface mounted) or root fix (submerged).

Hot dipped Galvanising to BS EN ISO 1461 prior to polyester powder coating.

Vinyl and reflective banding in various colours and grades of reflective material.

Height restriction sign ‘MAXIMUM HEIGHT- X METRES’ signage.

Nudge bar is available

Fixings bolts

Integral gate

Padlock

Installation Service
