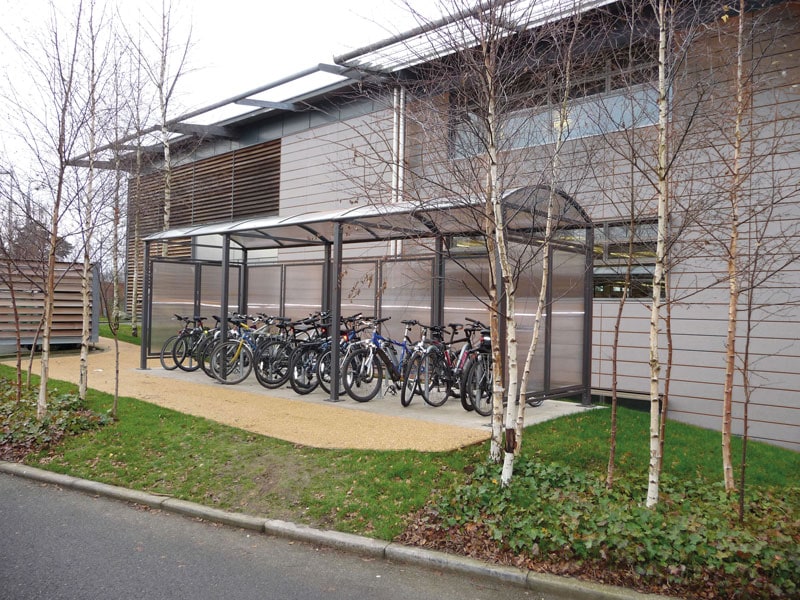

The Uni Shelter

The ‘Uni shelter’ is a common shelter for large volumes of bikes such as a university or college campus.  It has a classic look and offers a modern yet practical design solution that allows for easy access and secure storage for multiple cycle racks and stands.

This design can also be utilised as a walkway structure by omitting the side panels and adding successive shelters as required to form a modular covered ‘walkway’.  The shelter is a full aluminum modular shelter that offers protection and storage for a large number of cycles in a linear capacity. The capacity can be increased by adding further units together. It’s ideally suited to schools, colleges and universities.  It includes optional end panels to constitute a secure cycle shelter and can include led lights for additional security and visibility. Most cycle stands and racks can be installed inside this shelter design. The shelter can also be supplied with a fully integrated factory fitted LED lighting system with the LEDS neatly set into the cross beams providing discrete and energy efficient lighting to the shelter or walkway.

Construction:

A robust and elegant design manufactured in strongbox 80 x 80 mm mild steel section with adjustable base plate feet. Supplied in ‘flat pack form for assembly on site with anti-tamper, high strength bolts the structure is hot dipped galvanised to BS EN ISO 1461: 2009.

The roof has two aluminum tubular crossbeams and two aluminum rainwater gutters that are fixed to built-in ‘U’ shaped sections of uprights.

The roof is in a 6 mm translucent panel with an anti UV polycarbonate glazing.

The side cladding is made up of aluminum with 10 mm UV stable polycarbonate.

Finish:

The shelter can be powder coated to most standard RAL or BS colour

Dimensions: Height 2635 mm  width 2090 mm Standard lengths 2500 mm, with alternative lengths made to order.

Extensions:

Modular extension unit is 2500 mm (L), 2635 mm (H), 2170 mm (W)

Side and back cladding:

Side cladding pieces which are supplied in pairs are 959 mm (L), 1740 mm (H), 23 mm (W)

Back cladding pieces which are supplied in two pieces are 1150 mm (L), 1750 mm (H), 23 mm (W)

Options:

Range of internal cycle storage racks and stands options

End panels

Extension units, modular to increase capacity

Integral helmet lockers, vertical or horizontal

Shelter can be configured to BREEAM standards

Steel framework can be polyester powder coated in most standard RAL colours

Full installation service available UK wide by full trained site installers with a full site survey service available
