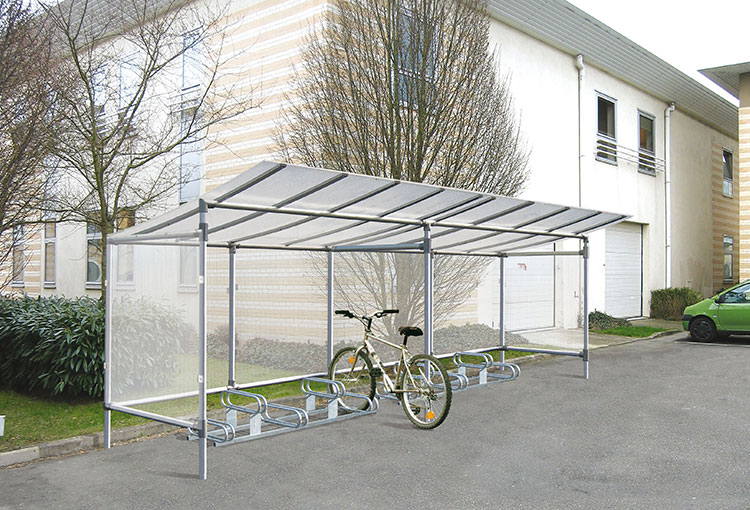

Backslope

The backslope shelter is an economical, modern and practical design that allows for easy access and secure storage for five cycles per bay/module manufactured in aluminum and also galvanised mild steel sections.

The 5 bay cycle rack designed specifically for the shelter is a ‘high/low’ design to make optimal use of the space inside and maximise storage capacity.

This is a contemporary design that uses an overhanging roof and shorter frame to give a back slopped effect. This contemporary design allows for easy access and secure storage.

The capacity can be increased by adding further units together. It’s ideally suited to modern street scenes or ‘newbuild’ projects.  It includes optional end panels to constitute a secure cycle shelter. Most cycle stands and racks can be installed inside this shelter design.

Construction:

Anodised aluminum 50 mm uprights for assembly with cast aluminum connectors, locked in place with stainless steel screws. The mild steel members are in 50 mm ‘Sendzimir’steel tubes.

Supplied in ‘flat pack’ form for assembly on site with anti-tamper, high strength assembly bolts.

The roof is in translucent 10 mm polycarbonate UV stable glazing panels.

The side cladding is made up of 10 mm translucent UV stable polycarbonate panels

Please note this unit is has a submerged root fix system designed to be concreted directly into the ground.

Finish:

The shelter can be powder coated to most standard RAL or BS colours

Dimensions: Height 2150 mm at front, 1827 mm back, width 1977 mm (Overhang at front is 625 mm), Length is 2576 mm

The modular extension unit is 2550 mm in length, which increases cycle storage by a further 5 cycles.

Options:

Range of internal cycle storage racks and stands options

End panels

Extension units, modular to increase capacity

Integral helmet lockers, vertical or horizontal

Shelter can be configured to BREEAM standards

Steel and aluminum framework can be polyester powder coated in most standard RAL colours

Full installation service available UK wide by fully trained and accredited installers with a full site survey service available

SKU: CYSH.BACK Category:
