Multi Lane Bespoke Height Restrictor

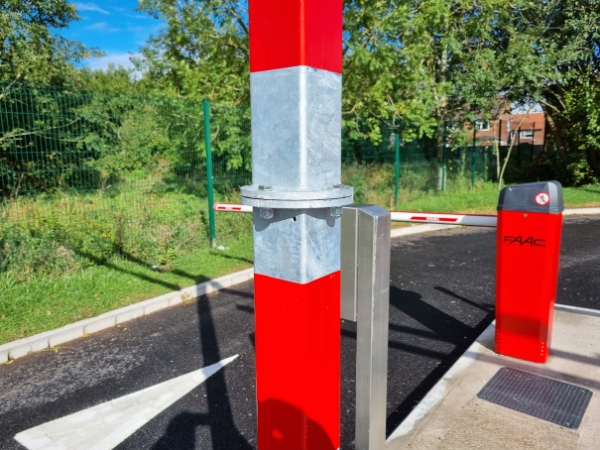

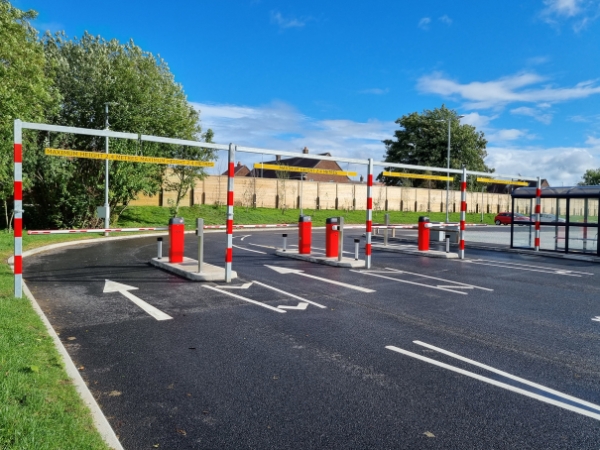

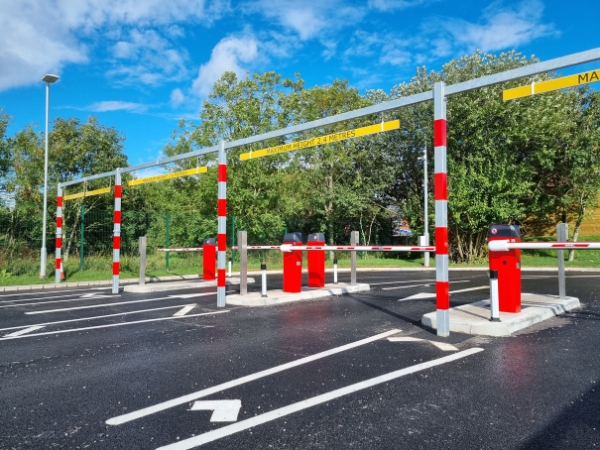

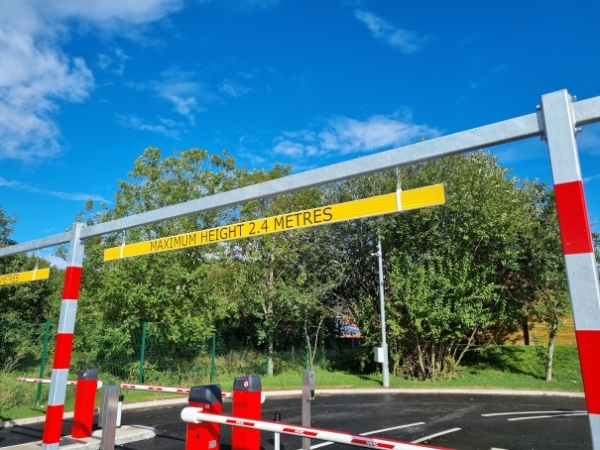

Robust bespoke multi lane height restrictor unit with swing and pivoting mechanism to allow access for taller vehicles when required which is ideal for car parks. This features aluminum ‘nudge’ bars to the underside of the beams and is made to order to suit specific site requirements and dimensions.

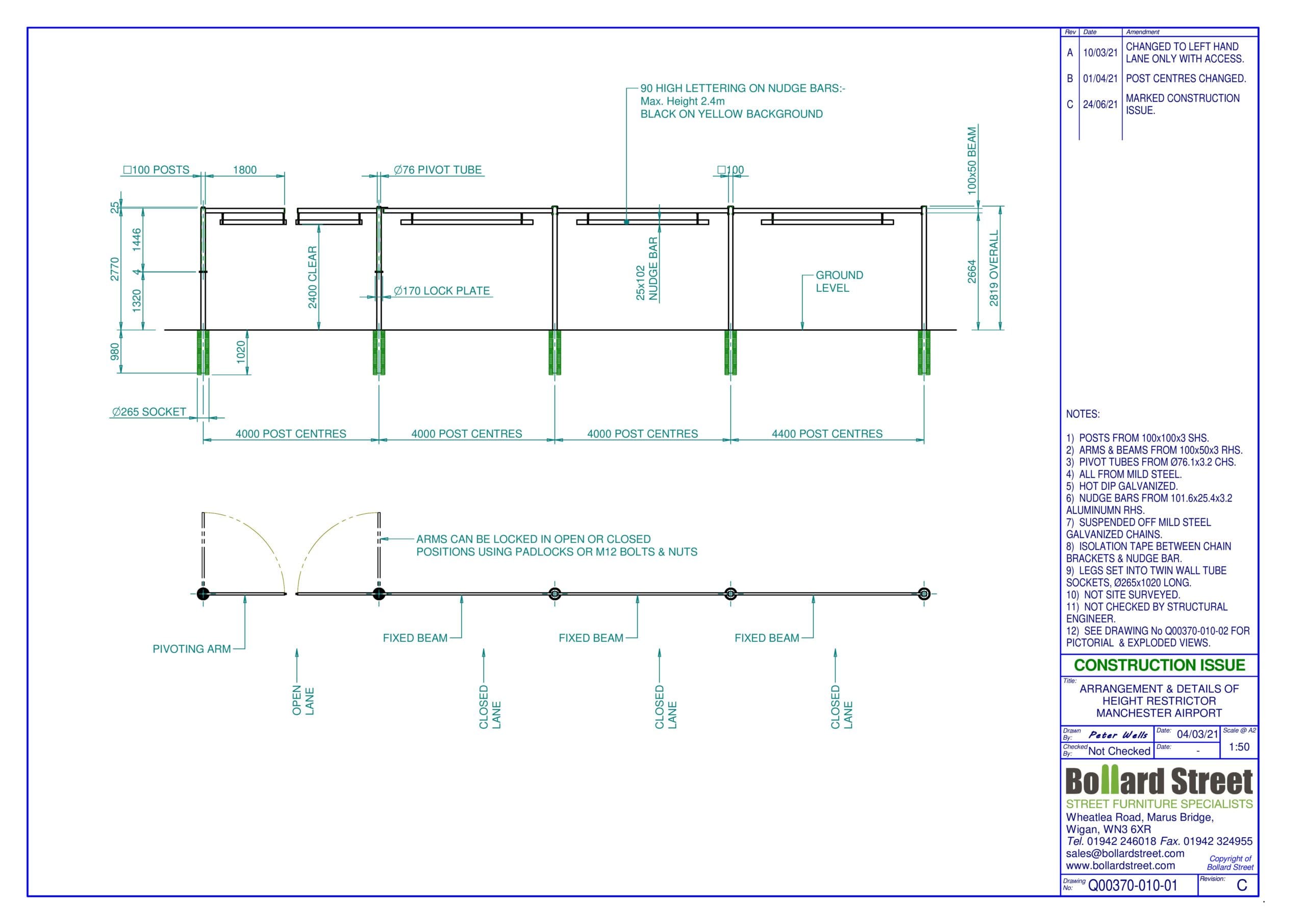

Specification:

100 mm x 100 mm Mild steel square hollow section vertical posts
100 x 50 RHS top beams/arms
Hot dipped galvanized to BS EN ISO 1461.
Root fix as standard

Options:

Support posts can be base plate fix (surface mounted) or root fix (submerged).
Powder Coated to any standard RAL colour
Vinyl and reflective banding in various colours and grades of reflective material.
Integral gate
Installation Service
