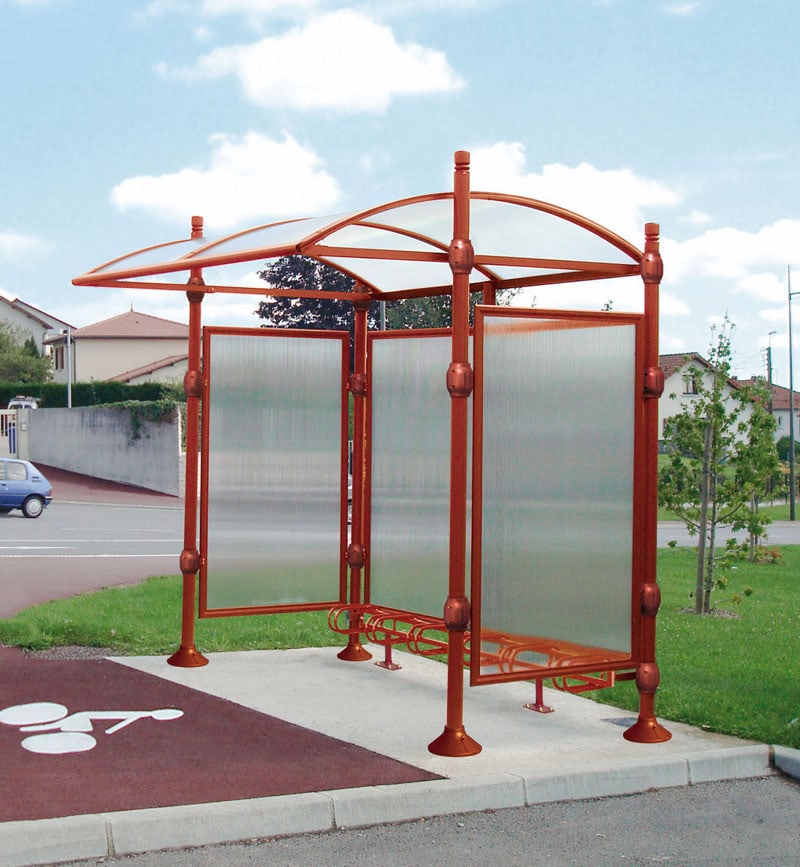

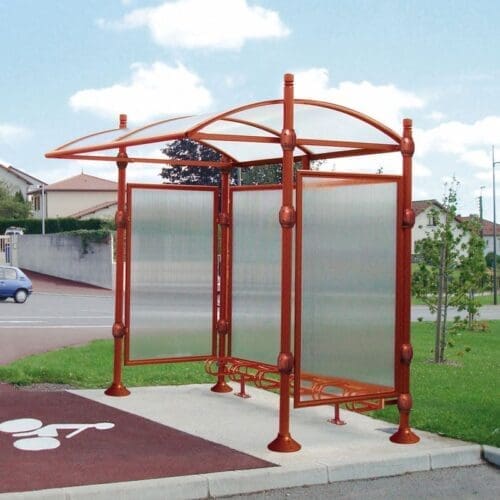

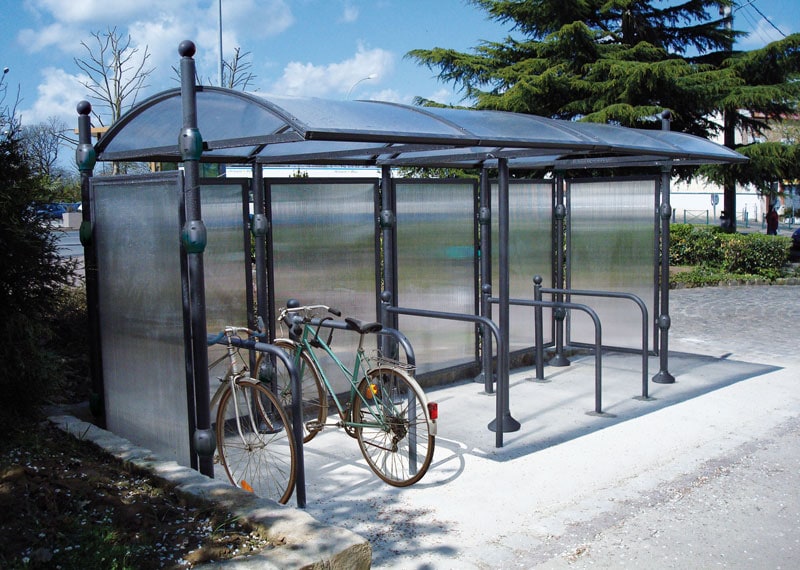

Traditional Cycle Shelter

The Traditional Shelter offers more of a retro and traditional look to blend in with existing street scenes.  This shelter is a simple yet practical design that allows for easy access and storage for multiple cycle racks and stands. The integral cycle rack option will store six cycles.

The shelter is shelter is manufactured completely in aluminum that offers protection and storage for a large number of cycles. The capacity can be increased by adding further units together. It’s ideally suited to blend into conservation areas or traditional scenes and has a decorative top cap with optional head designs.  It offers optional end panels to constitute a front facing shelter with improved weather protection. Most cycle stands and racks can be installed inside this shelter design.

Construction:

Fully aluminum comprising of 40 x 60 mm aluminum beams and collars with 76 mm dia. upright posts.

The ‘barrel’ roof features two aluminum profile rainwater gutters, with curved aluminum profile roof arcs.

The roof is in a 6 mm translucent panel with an anti UV polycarbonate glazing.

The side cladding is made up of aluminum frame with glazing made up of 10 mm UV stable polycarbonate.

Optional side cladding panels are supplied in pairs, to be attached to the support posts by collars.

Back cladding comprising two panels with a central upright, to be attached to the posts by collars.

The shelter is supplied in ‘flat pack’ form for assembly on site with all required anti-tamper, assembly bolts.

The shelter can added to with extension units.

Finish:

The shelter can be powder coated to most standard RAL or BS colour

Dimensions: Height 2713 mm (inc top cap) 2253 mm width, 2726 mm length

Options:

Range of internal cycle storage racks and stands options

End panels

Extension units, modular to increase capacity

Integral helmet lockers, vertical or horizontal

Shelter can be configured to BREEAM standards

Aluminum framework can be polyester powder coated in most standard RAL colours

Full installation service available UK wide by fully trained and accredited installers with a full site survey service available

SKU: CYSH.TRAD Category:
