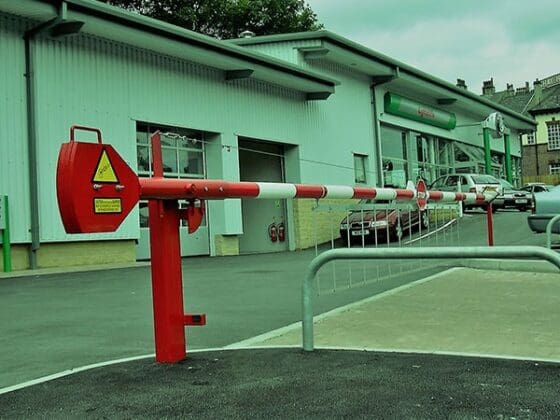

Heavy duty barrier

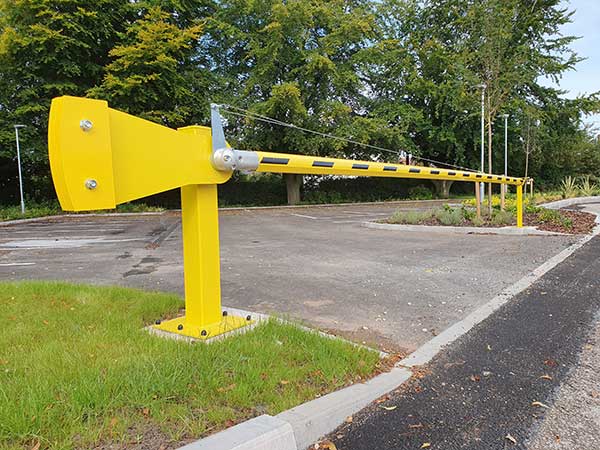

The Heavy duty raise arm barrier spans an area of up to 9.0 metres. The pivot assembly is made of steel box section, this pivots on two heavy duty stainless steel bearing blocks.

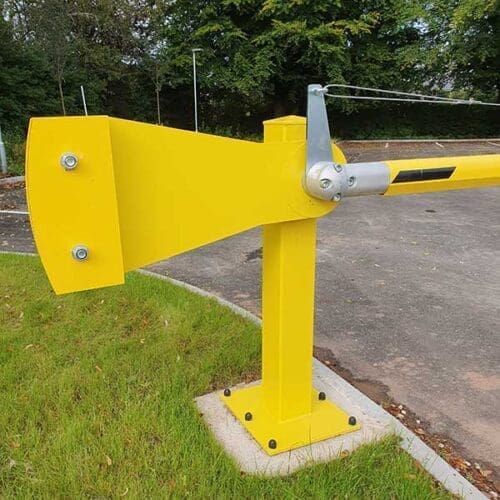

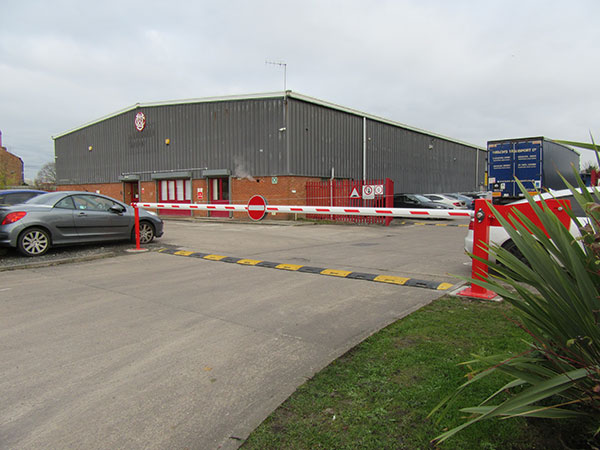

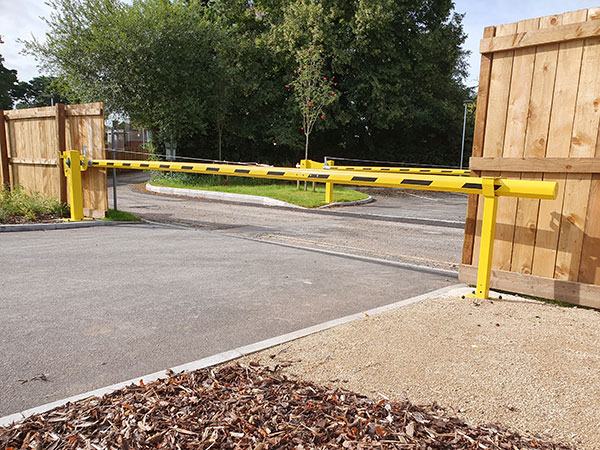

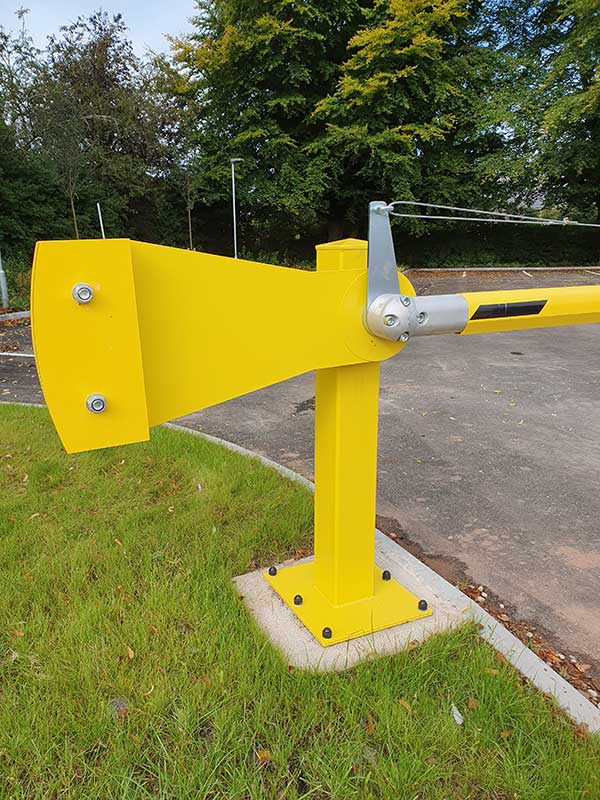

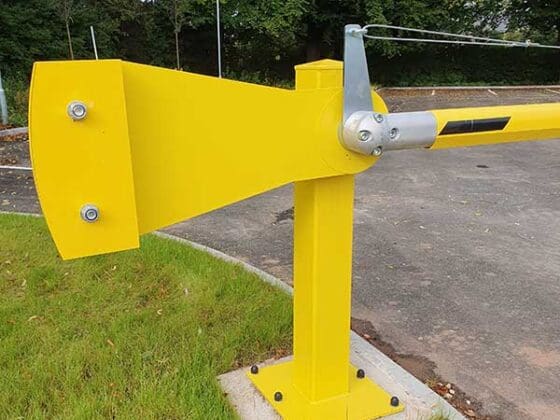

Aluminium arm, finished in either alternate red and white or alternate yellow and black vinyl hatching as standard (other colours available).The design of the barrier also comes with a locking mechanism allowing you to fix the barrier in the raised and lowered position prior to applying the padlock. A counter balanced fish tail weight, is fine tuned for ease of operation. Dual barriers are available with a central locking mechanism to suit wider spans. This barrier unit comes complete with a lockable end rest, padlock and keys as standard. M16 anchor shield bolts are also included.

Standard colours: Red/white or yellow/black.

Specification:

Counter balanced manual raise arm barrier

Maximum boom length:

Up to 9.0 meters

Boom diameter:

101 mm oval section pole

Finish:

Polyester powder coated in a single RAL colour, alternate vinyl bands to pole arm

Dimensions:

120 mm square

Comes complete with:-

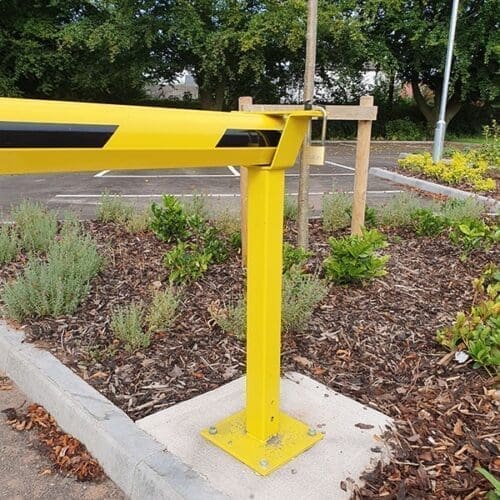

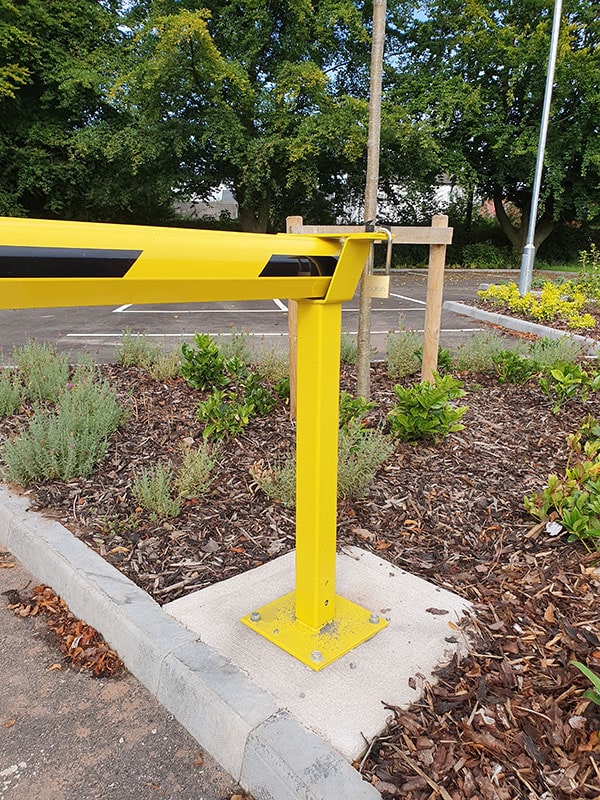

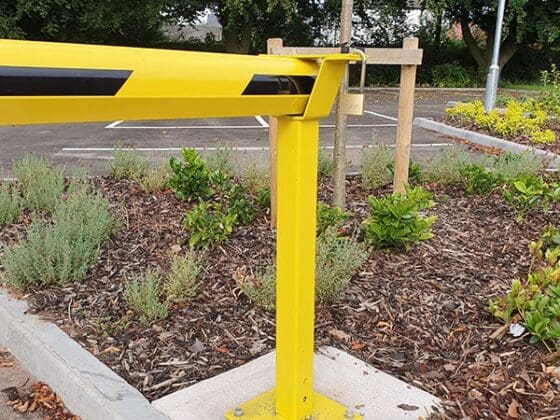

  • Lockable end post
  • Padlock
  • Anchor shield bolts
  • Lifting handle

Optional extras:-

Bottom skirting

Stop/no entry signs

Pogo tip support
