Cantilever Single Arm

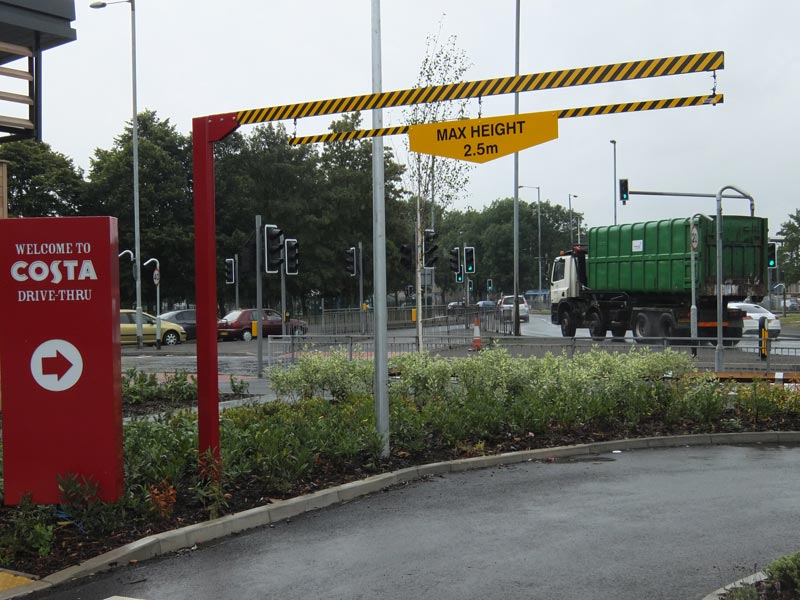

This novel and unique design allows for flexible positioning and is well suited for fast food restaurants and drive through restaurants. The single support provides more flexibility in terms of sighting and positioning.

This robust design consists of a study 120 x 120 mm or 150 x 150 mm square mild steel section support depending on the beam width and is suitable for road widths from 3 meters and up to 5 meters. The cross beam member is typically manufactured in timber and in finished in high visibility black and yellow and can easily be replaced and or repaired if damaged. Custom sizes and heights can be built to order.

The unit is polyester powder coated as standard in signal red RAL 3001 with alternative RAL colours also available. Clear signage allows vehicle occupants the opportunity to determine whether they have sufficient clearance to proceed under the cross beam in order to pass.

Specification:-

• 120 x 120 mm x 5 mm & 150 mm x 150 mm x 5 mm Mild Steel square hollow section vertical post.
• Removable tapering rectangular horizontal cross beam finish in black and yellow
• Standard Height 2.5 meters with alternative heights manufactured to customers own specification
• Spans from 3 m to 5 m manufactured to customer specification.
• Powder Coated to any standard RAL colour and or Hot dipped galvanised finishes available.

Options:-

Support posts can be base plate fix (surface mounted) or root fix (submerged).

Hot dipped Galvanising to BS EN ISO 1461 (2009) prior to polyester powder coating.

Vinyl and reflective banding in various colours and grades of reflective material.

Height restriction signs ‘WARNING HEIGHT RESTRICTION’ signage and padlocks.

Nudge bar is available

Fixings bolts
