Cranked Bollard in Mild Steel

Product code: MS.CKBOL

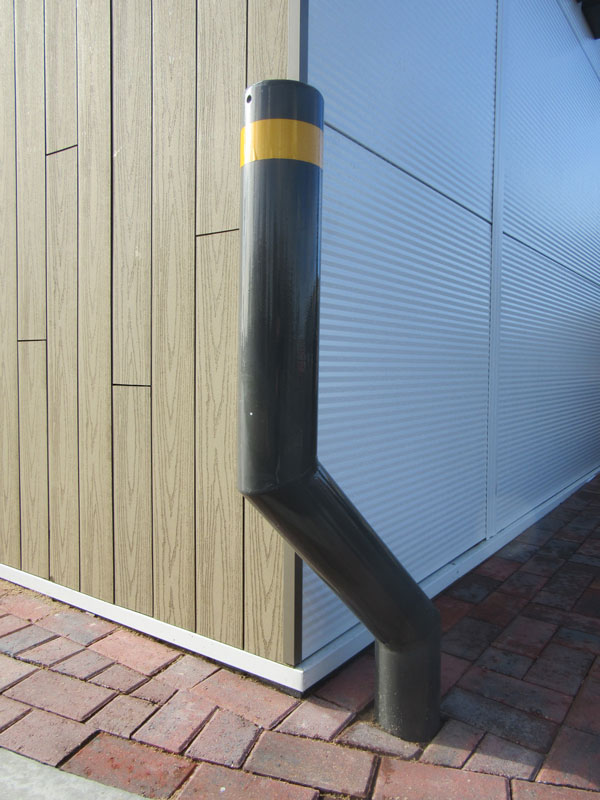

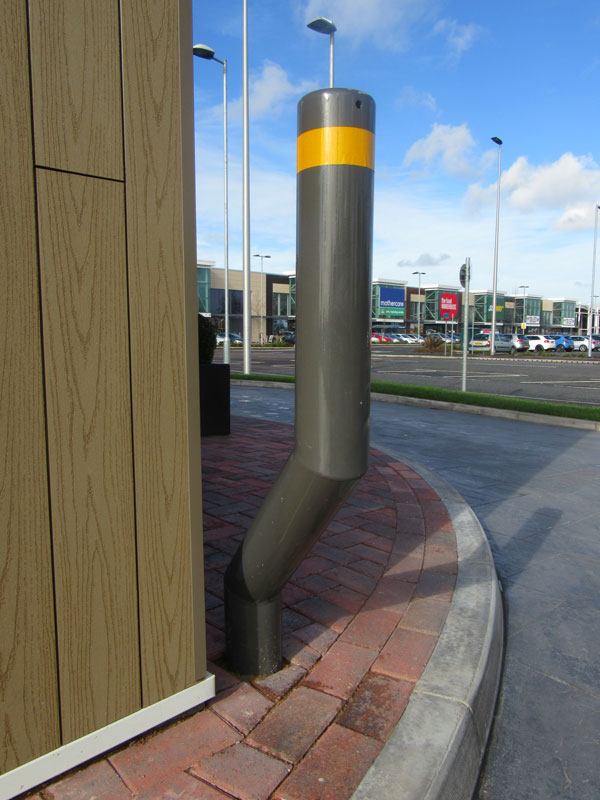

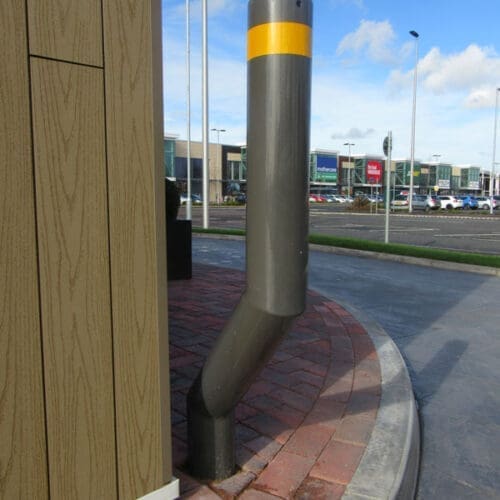

The cranked bollard is typically utilised and positioned strategically to protect corners of drive through restaurants to protect damage to the corners of buildings, menu boards and speaker posts etc.

Bollards are available in all standard mild steel round diameter/sections (CHS tube) in various wall thickness and hot dip galvanised to BS EN ISO 1461:2009 for maximum corrosion resistance and or polyester powder coated in any standard RAL or BS colour to match corporate colour schemes.

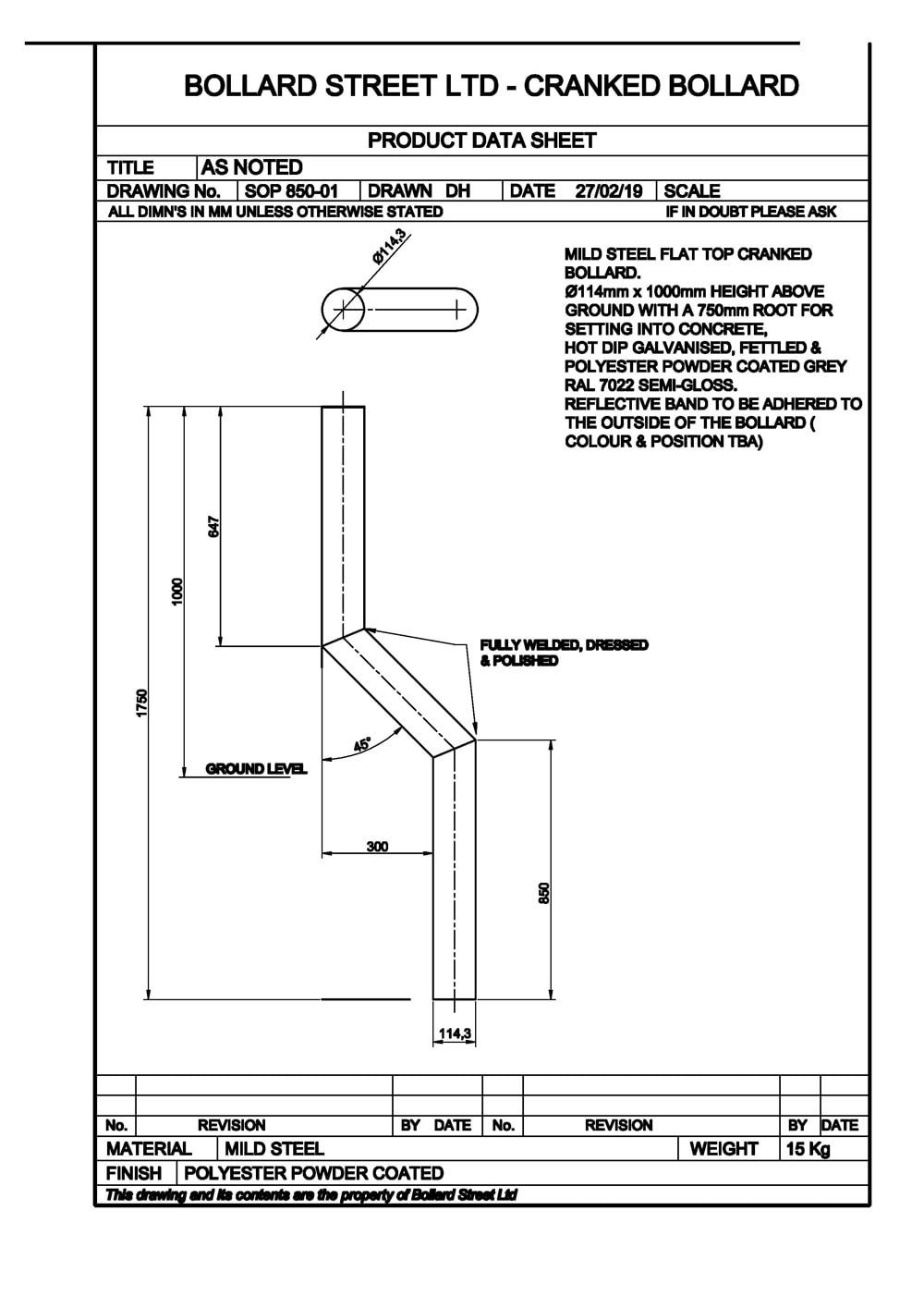

These bollards are manufactured to suit our customers own specific individual project requirements, so the width of the post can be specified and once agreed a final drawing sent over for final consultation and agreement.

Reflective banding can also be applied to the bollard to increase visibility and reduce the likelihood of a potential impact.

Formats include:-
• Static root fix, ‘ragged fix’
• Base plate fix
Options: –

Polyester powder coating to most standard RAL and BS standard colours
Reflective banding, applied to the bollard in various colours, patterns.
Turned rebates for the banding to be set into
Loose cap with ‘J’ tang for concrete filling bollard for additional strength
Hot dip galvanising to BS EN ISO 1461:2009 for maximum corrosion resistance

Bollard top options:-
Flat, semi dome, ‘high’ dome, sloped angled/mitred top, loose top cap with ‘J’ tang.
Dimensions:-

Various standard bollard diameters to order from 76 mm diameter up to 193 mm diameter.
76, 90,101, 114, 127, 140, 150, 168, 193 mm

Standard bollard lengths:-

1000 mm, 900 mm or 750mm heights above ground or made to client’s specification
