Composite Clad Bin Store

The composite clad bin store variant features durable composite slats available in a variety of colours which replicate the grain pattern of natural timber which is virtually maintenance free. The support structure is made from durable high quality mild steel frame steel which is hot dipped galvanised to BS729 as standard.

Designed to accommodate multiple wheelie bins for multiple users, ideal for apartment complexes and social housing.

This is a flexible modular design which is UK manufactured and can be easily adapted and is available in various configurations and sizes.

The shelter’s aesthetics make it ideally suited for urban settings restaurants and town centres, but it equally blends into more urban environments creating an attractive contrast between the timber slats and the surrounding built environment.

Offering a complete secure bin store compound solution which is ideal for schools and university college campuses, commercial kitchens, restaurants and office blocks.

The bin store can be designed to be either ‘open’ or a secure compound with controlled access by means of lockable gates secured by mechanical keypad or padlock fix.

This store design is available with the option of a roof if required in various materials to order.

Product code: BINST.COMP

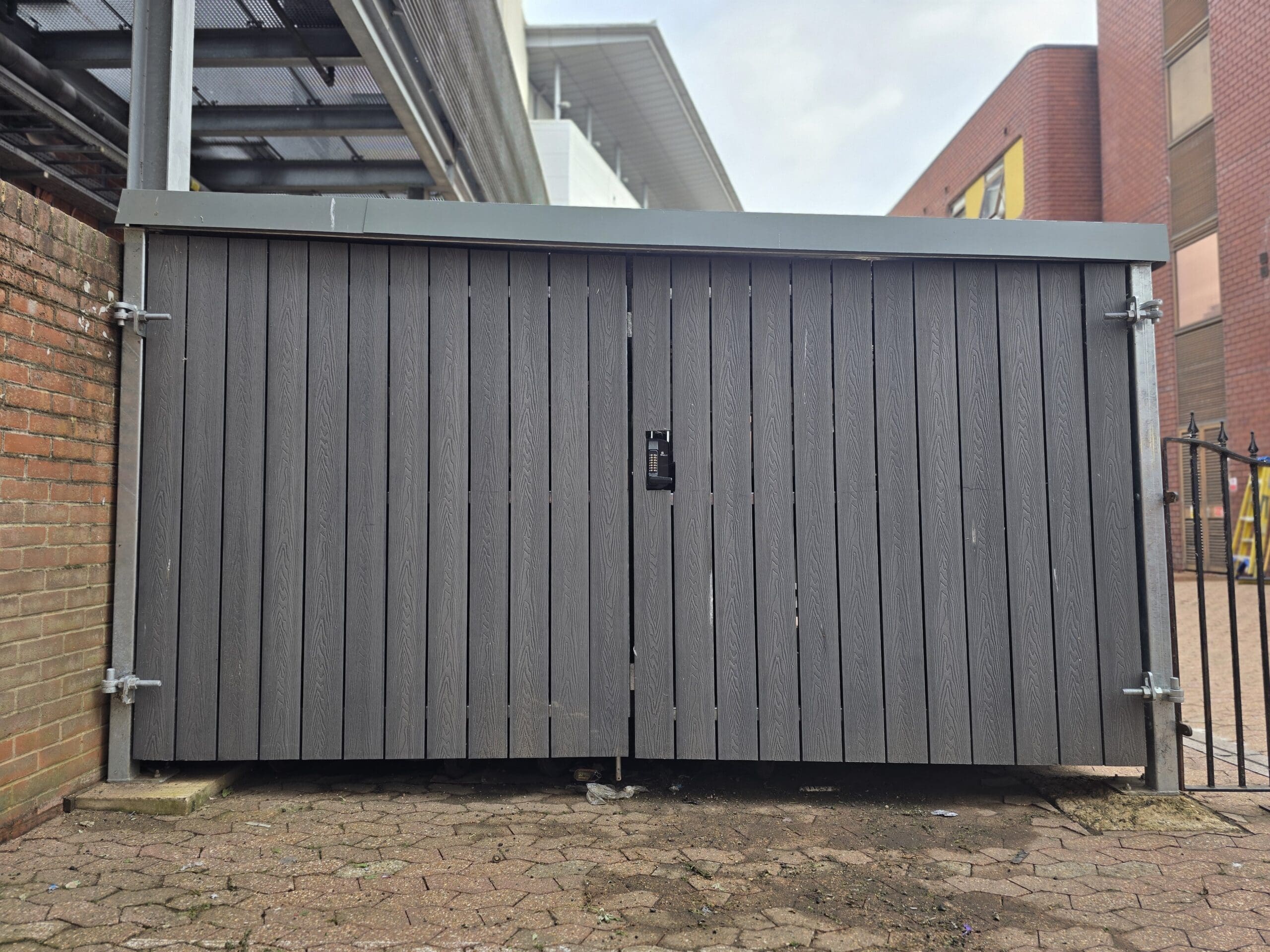

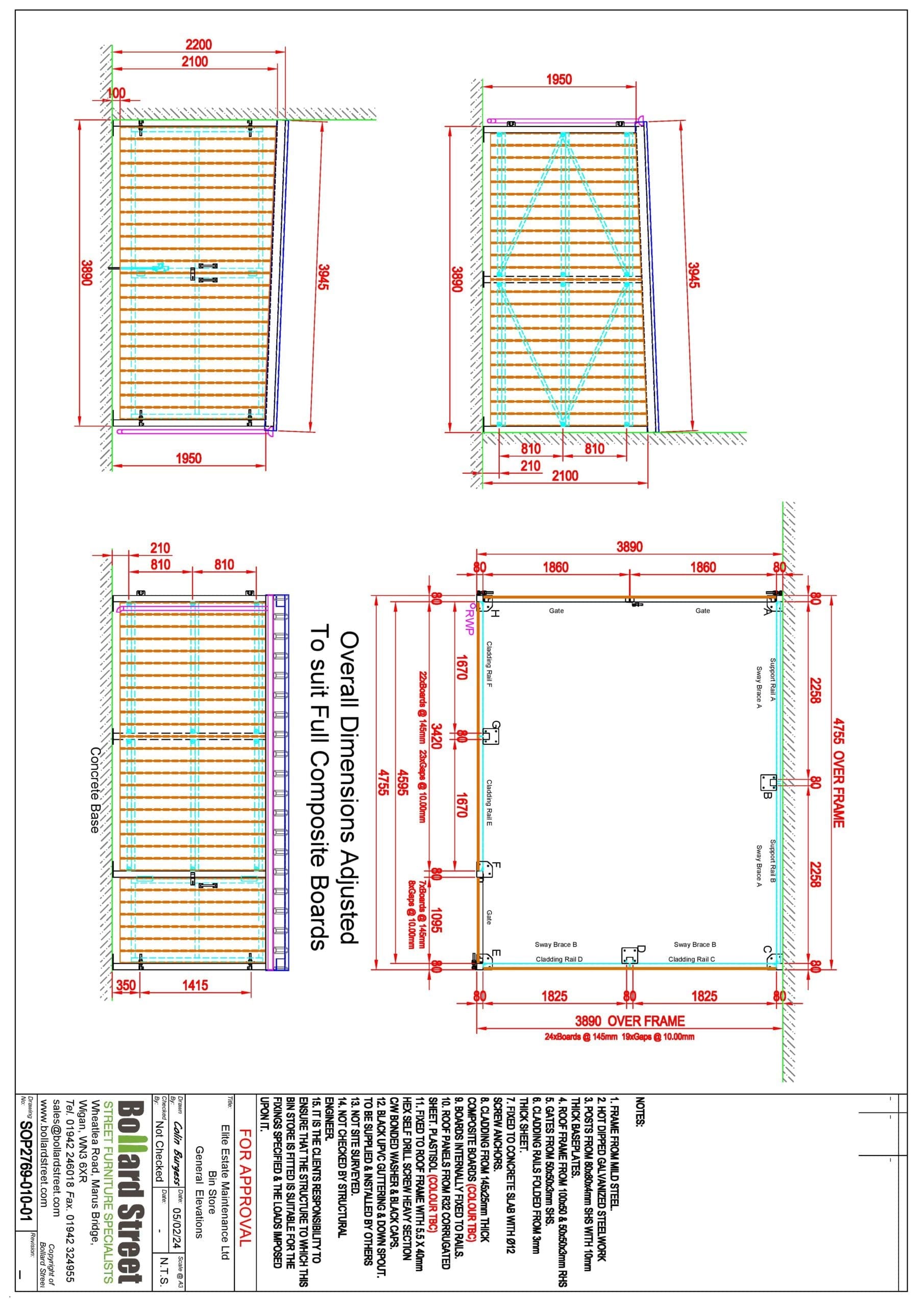

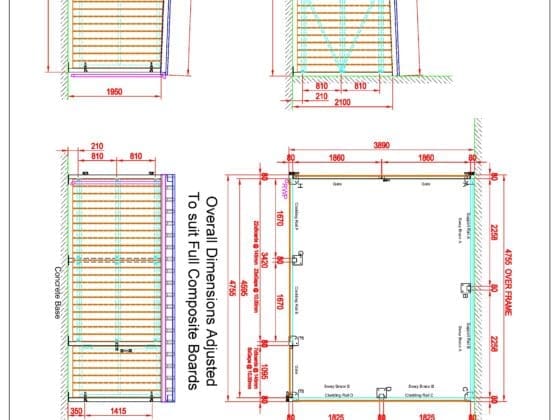

Dimensions:-  Unit shown 3890 x 4755– 2100 mm height for unit illustrated, widths and length made to order to suit individual clients requirements.

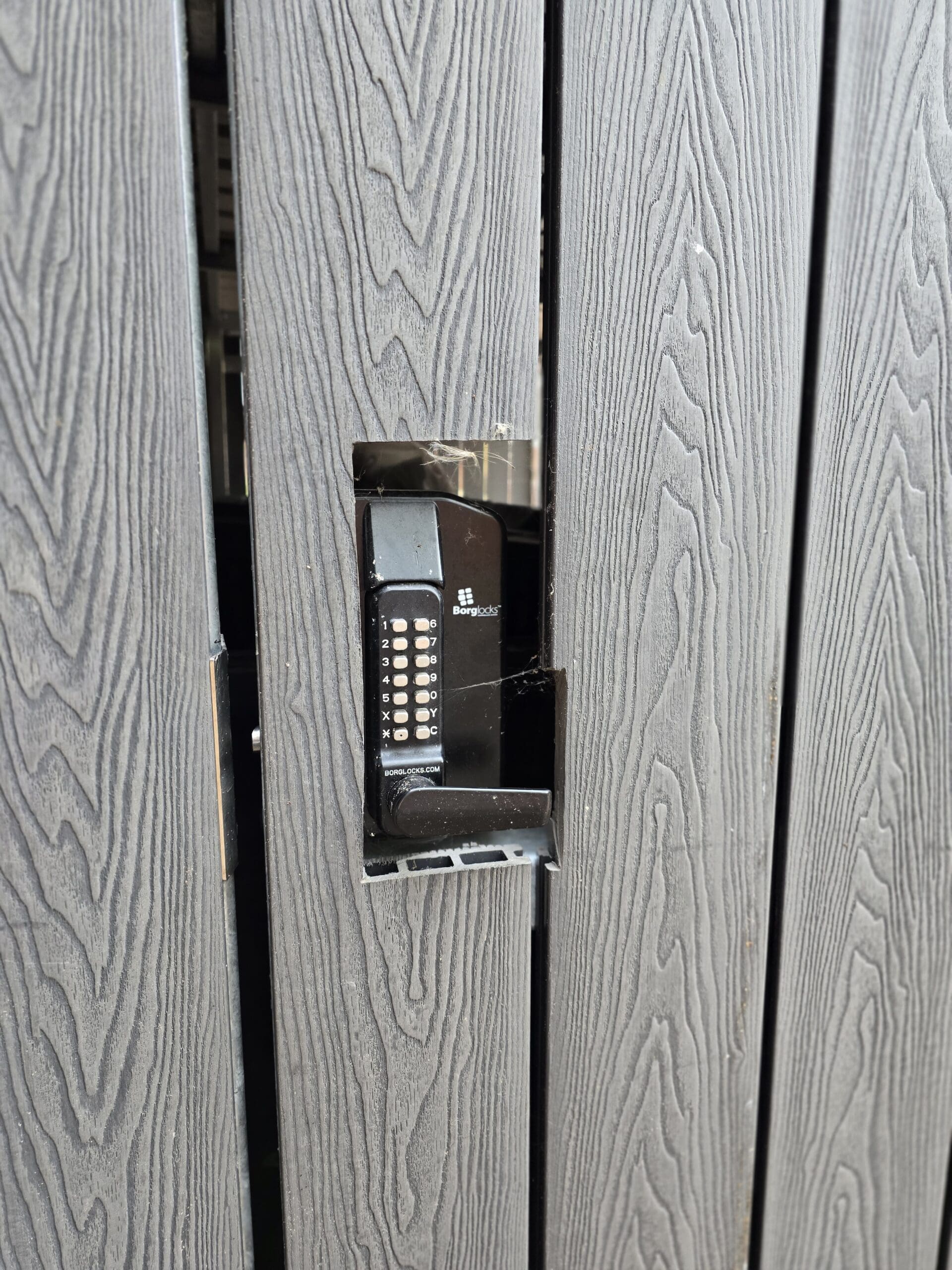

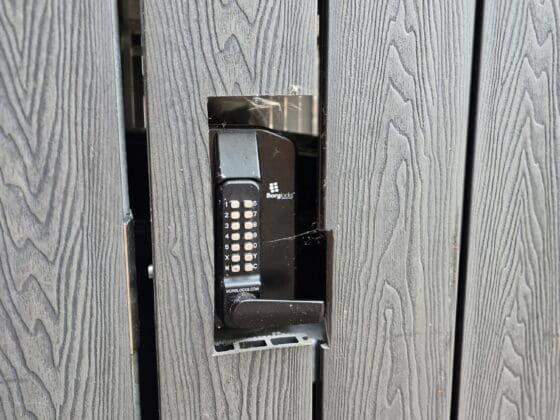

Lock mechanism

Locinox ‘Vinci’ mechanical code lock in silver



Cladding and structure

25 mm x 145 mm vertical boards, 2000 mm height shown in Welsh grey

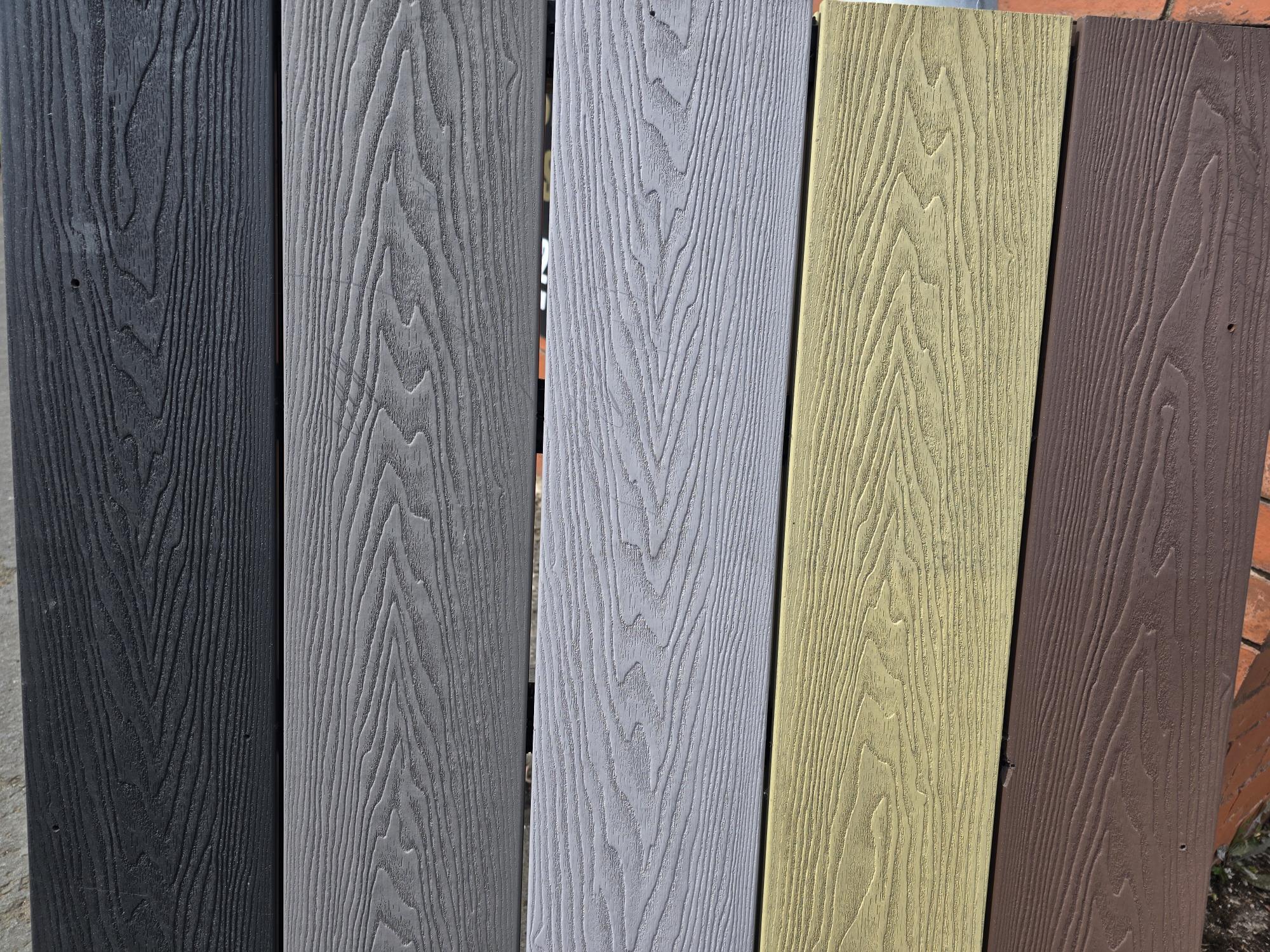

Colours available Welsh grey, mocha, charcoal, cool grey, warm sand

Mild steel support frame with hardwood cladding to project specification and requirements.

Robust modular construction and with mild steel sub frame in 70 x 70 mm SHS which is hot dipped hot-dip galvanized to BS EN ISO 1461:2009 for maximum corrosion resistance which can also be powder coated in a RAL colour to match a corporate colour schemes if required. The shelter can be designed to be either ‘open’ or a secure with a gate.

Vertical timber clad double leaf security gates with hasp and staple locking mechanisms

Submerged ground fixing with base plate

Hollow section end frames and purlins

Assembled with high strength bolts on site, supplied ready for assembly on site

and purlins and members are

Supplied ‘flat pack’ complete with all required ironmongery and assembly bolts to site, supplied ready for installation.

Options:-

Bespoke versions available to suit individual site requirements and dimensions

Corrugated R32 Profile roof

Green sedum roofs

Secure compound design available with either swinging or sliding gate

Vertical or horizontal cladding

Vertical clad double leaf security gates with hasp and staple locking mechanisms

Mechanical, coded locking mechanism to gates

Submerged ground fixing with base plate

Internal lighting

Gutter systems

Full installation service available UK wide by fully trained site installers with a full site survey service available by request.
