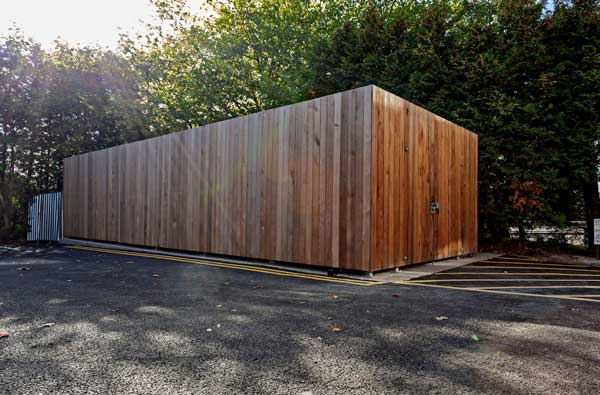

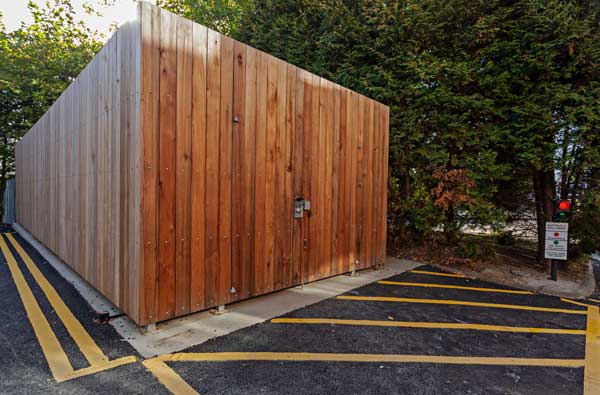

Cedar Bin Stores

A robust high capacity hardwood timber commercial compound clad in low maintenance Western red cedar with a mild steel sub frame and a discrete concealed integral roof.

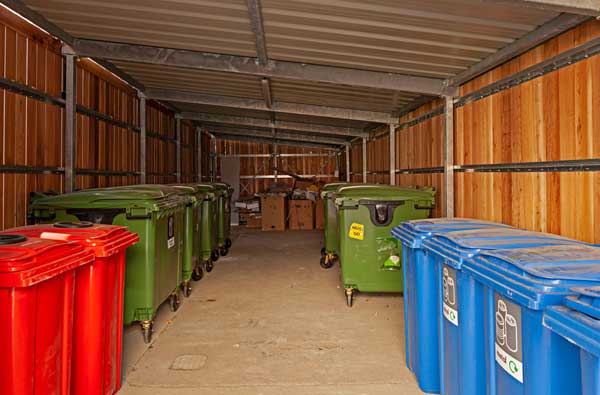

Designed to accommodate multiple wheelie bins for multiple users, ideal for apartment complexes and social housing.

This is a flexible modular design which is UK manufactured and can be easily adapted and is available in various configurations and sizes. Available with sustainable timber cladding in a choice of hardwoods in various finishes typically iroko, sapele, cedar and oak with the option of other species of timber to special order.

The shelter’s aesthetics make it ideally suited for rural settings, but it equally blends into more urban environments creating an attractive contrast between the timber slats and the surrounding built environment.

Offering a complete secure bin store compound solution which is ideal for schools and university college campuses, commercial kitchens, restaurants and office blocks.

The bin store can be designed to be either ‘open’ or a secure compound with controlled access by means of lockable gates secured by mechanical keypad or padlock fix.

This store design is available with the option of a roof if required in various materials to order.

Product code: BINST.HDWD

Dimensions:-  13000 x 4000– 2700mm height for unit illustrated, width and length made to order to suit individual clients requirements.

Lock mechanism

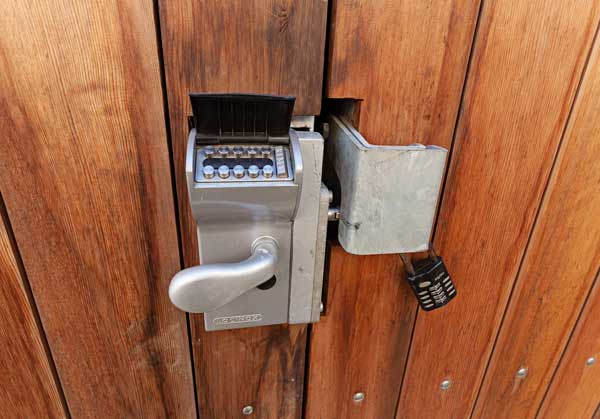

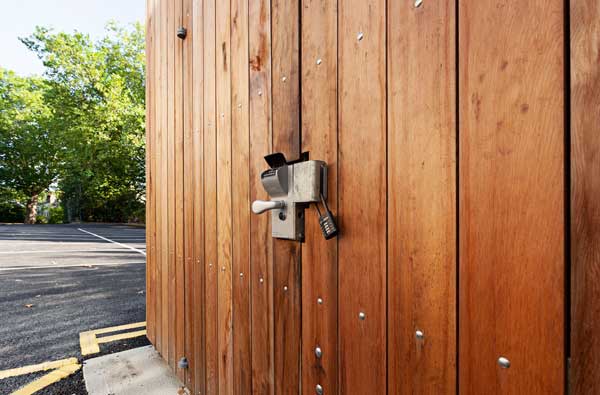

Locinox ‘Vinci’ mechanical code lock in silver



Cladding and structure

18 mm x 144 mm vertical boards, 2700 mm height

Mild steel support frame with hardwood cladding to project specification and requirements.

All timber is either PEFC or FSC certified which is felled in the U.K were possible.

Robust modular construction and with mild steel sub frame in 70 x 70 mm SHS which is hot dipped hot-dip galvanized to BS EN ISO 1461:2009 for maximum corrosion resistance which can also be powder coated in a RAL colour to match a corporate colour schemes if required. The shelter can be designed to be either ‘open’ or a secure with a gate.

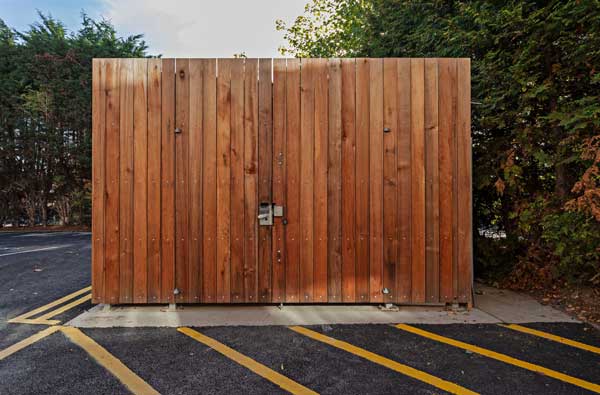

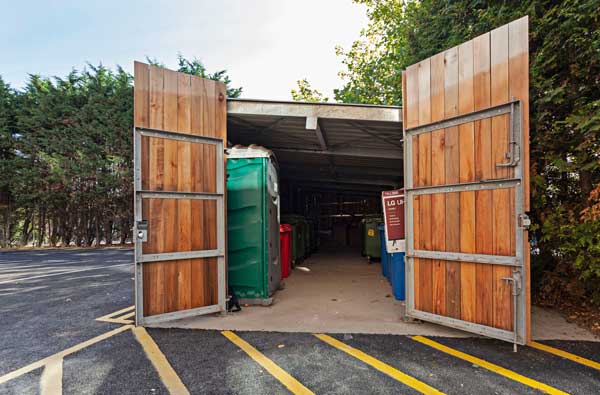

Vertical timber clad double leaf security gates with hasp and staple locking mechanisms

Submerged ground fixing with base plate

Hollow section end frames and purlins

Assembled with high strength bolts on site, supplied ready for assembly on site

and purlins and members are

Supplied ‘flat pack’ complete with all required ironmongery and assembly bolts to site, supplied ready for installation.

Options:-

Bespoke versions available to suit individual site requirements and dimensions

Secure compound design available with either swinging or sliding gate

Vertical or horizontal cladding timbers

Vertical timber clad double leaf security gates with hasp and staple locking mechanisms

Mechanical, coded locking pads

Submerged ground fixing with base plate

Internal lighting

Gutter systems

Full installation service available UK wide by fully trained site installers with a full site survey service available by request.
